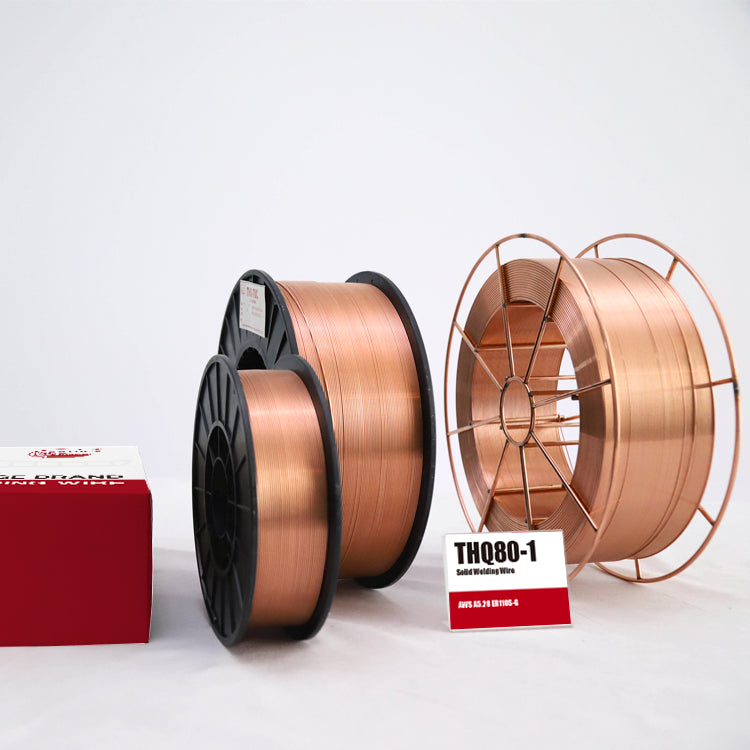

THQ80-1 (ER110S-G)
ER110S-G High-Strength Low-Alloy Solid Welding Wire
Certificates:
ABS
Application
- Shipbuilding
- Pressure Vessel
- Energy Industry
- Heavy Machinery
DETAILS
THQ80-1 (ER110S-G) is an 800 MPa class high-strength low-alloy solid welding wire designed for M21 mixed gas shielding. Featuring excellent all-position usability, it yields weld metal with high low-temperature impact toughness.
Features
- Designed for welding 800 MPa grade high-strength low-alloy (HSLA) steels
- Optimized for M21 mixed shielding gas ($\text{Ar/CO}_2$)
- Delivers superior low-temperature impact toughness and high yield/tensile strength
- Exceptional all-position welding capability with a stable arc, deep penetration, and low spatter
Typical Applications
- Engineering machinery, heavy earthmoving, mining equipment, and crane booms
- Steel bridge construction, high-rise buildings, and heavy structural frameworks
- Vehicle manufacturing, heavy transport chassis, and mobile equipment
- High-strength pressure vessels and industrial steel fabrications
Welding Positions
- PA / PB / PC / PD / PE / PF / PG
WARNING
- -
| Test Item | Rm (MPa) | Rel / RP₀.₂ (MPa) | A （%） | KV₂ （J） -40℃ |
|---|---|---|---|---|
| Requirement | 770-940 | ≥690 | ≥17 | ≥69 |
| Typical Result | 823 | 751 | 19 | 84 |
| Element | C | Mn | Si | S | P | Ni | Cr | Mo | Cu |
|---|---|---|---|---|---|---|---|---|---|
| Typical Result (%) | 0.08 | 1.67 | 0.57 | 0.009 | 0.011 | 1.44 | 0.24 | 0.48 | 0.11 |
| Diameter (mm) | 0.8 | 1.0 | 1.2 | 1.6 |
|---|---|---|---|---|
| Current (A) | 50-180 | 70-230 | 80-350 | 120-500 |
