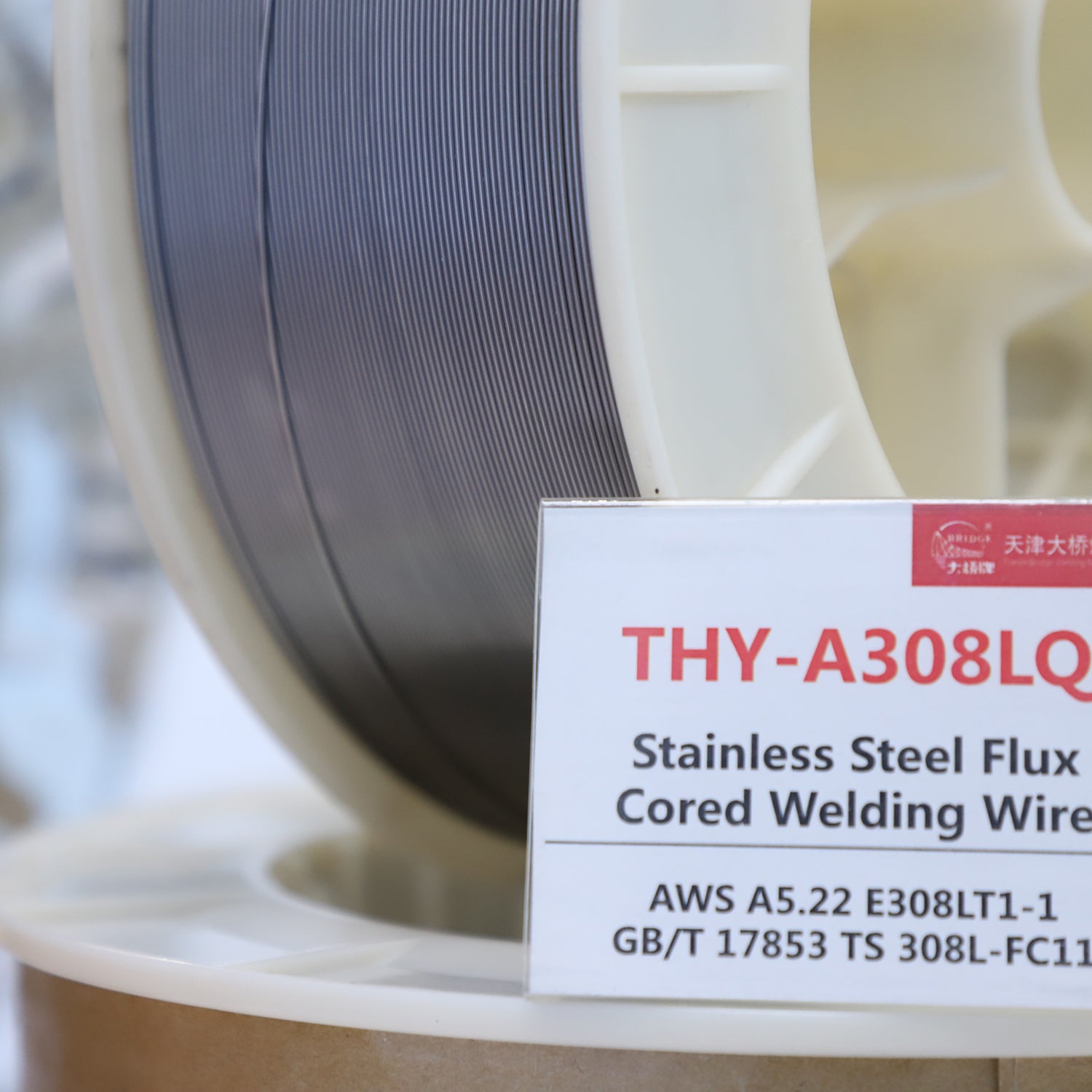

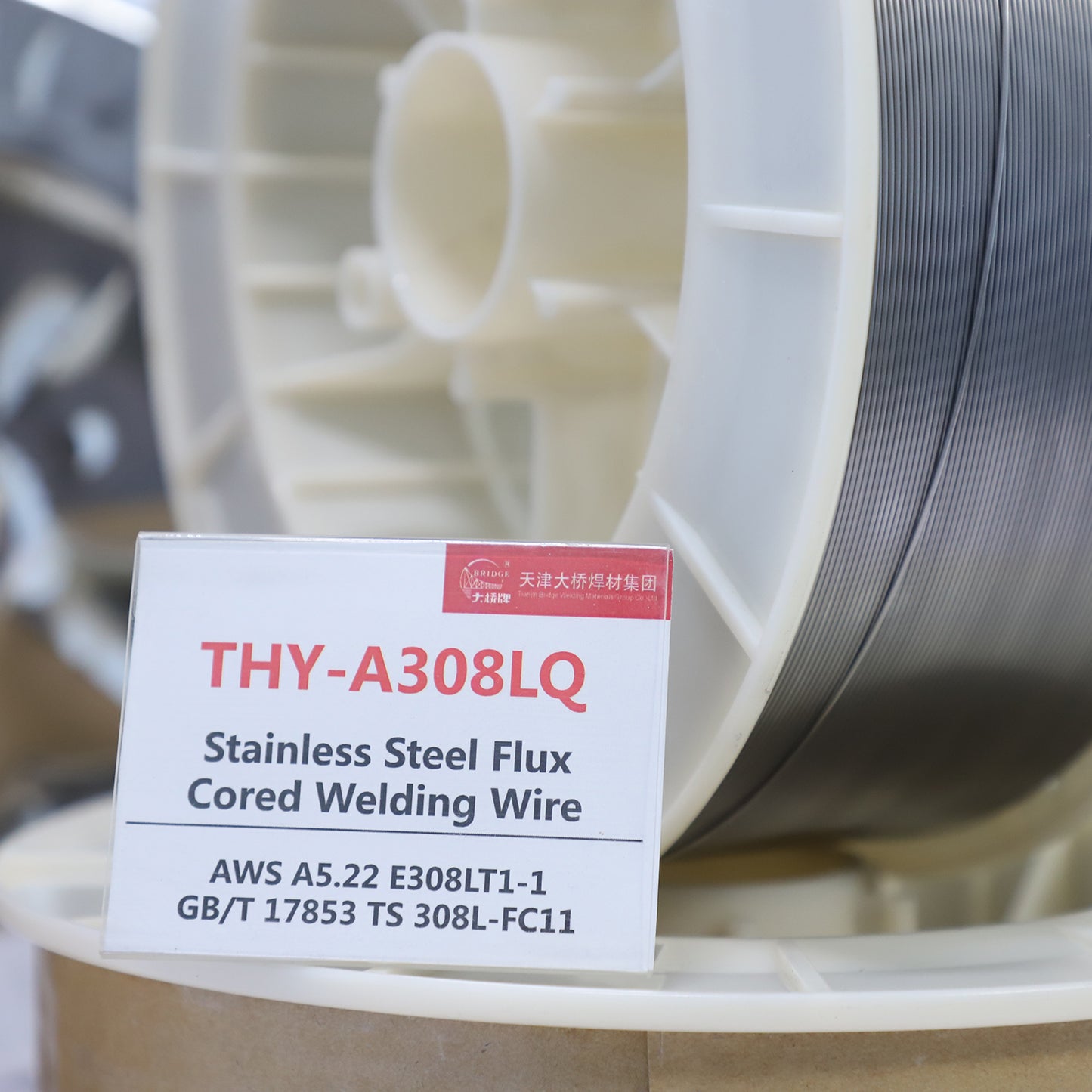

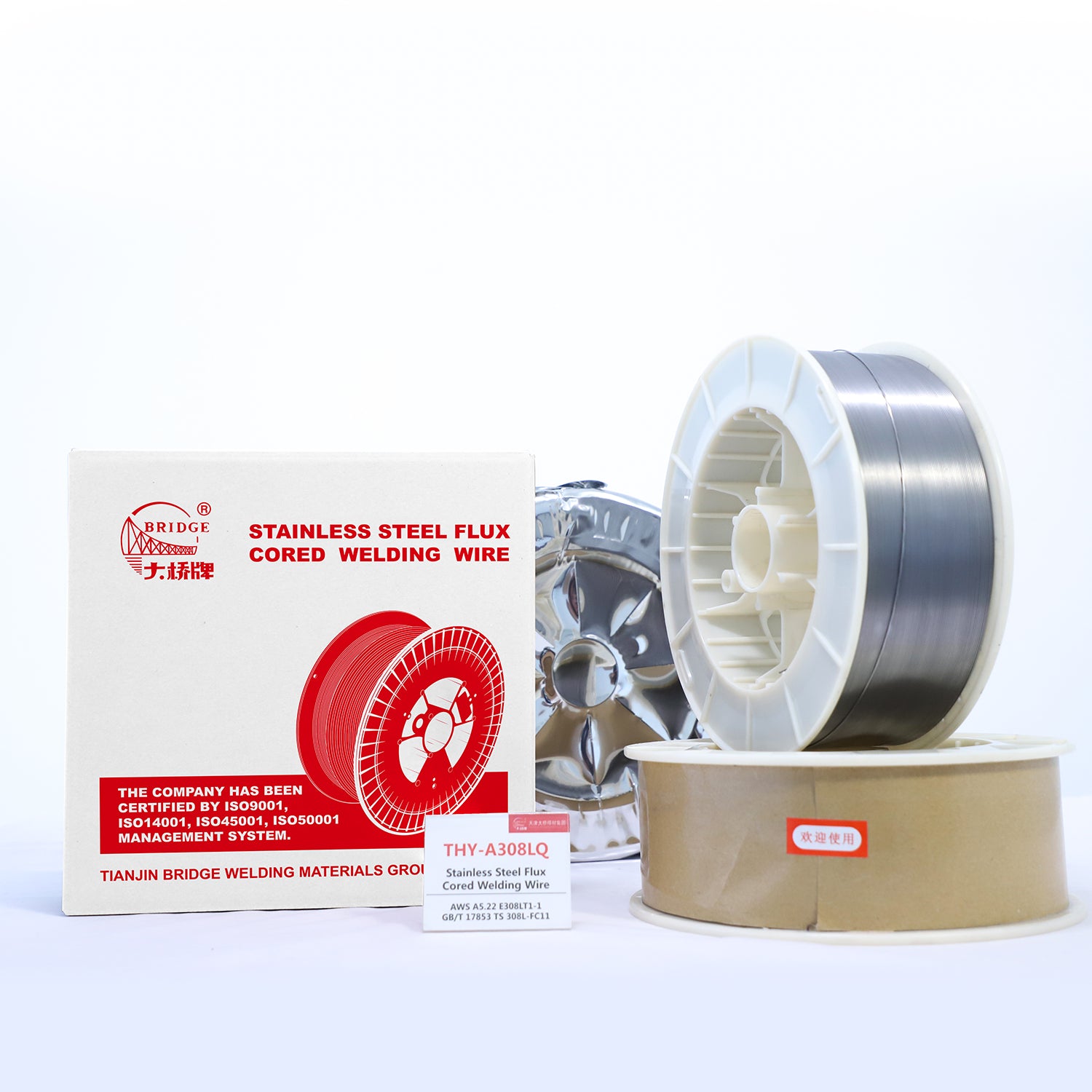

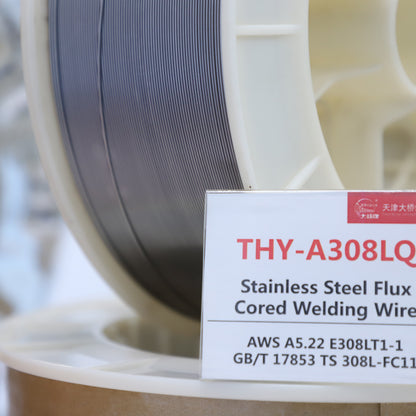

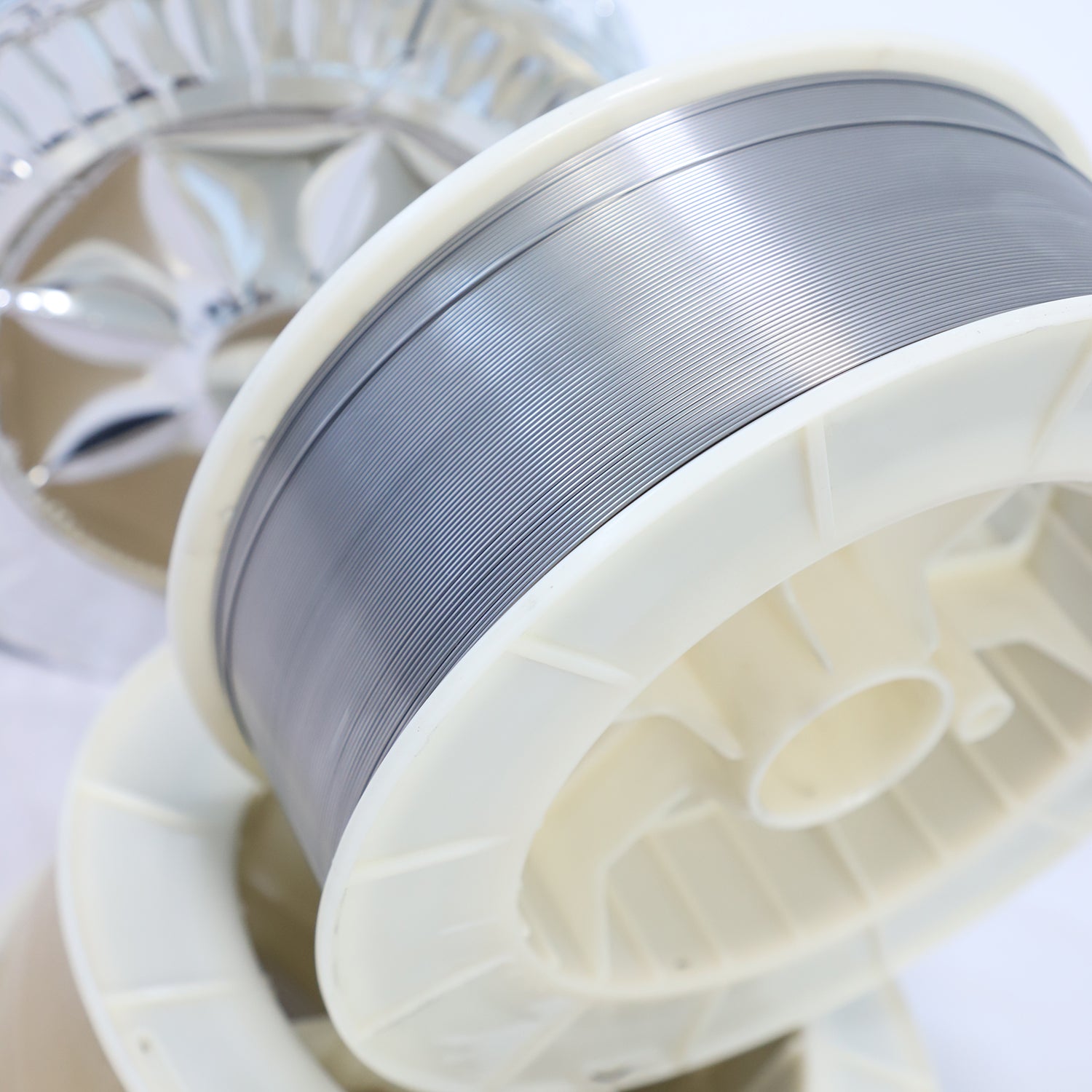

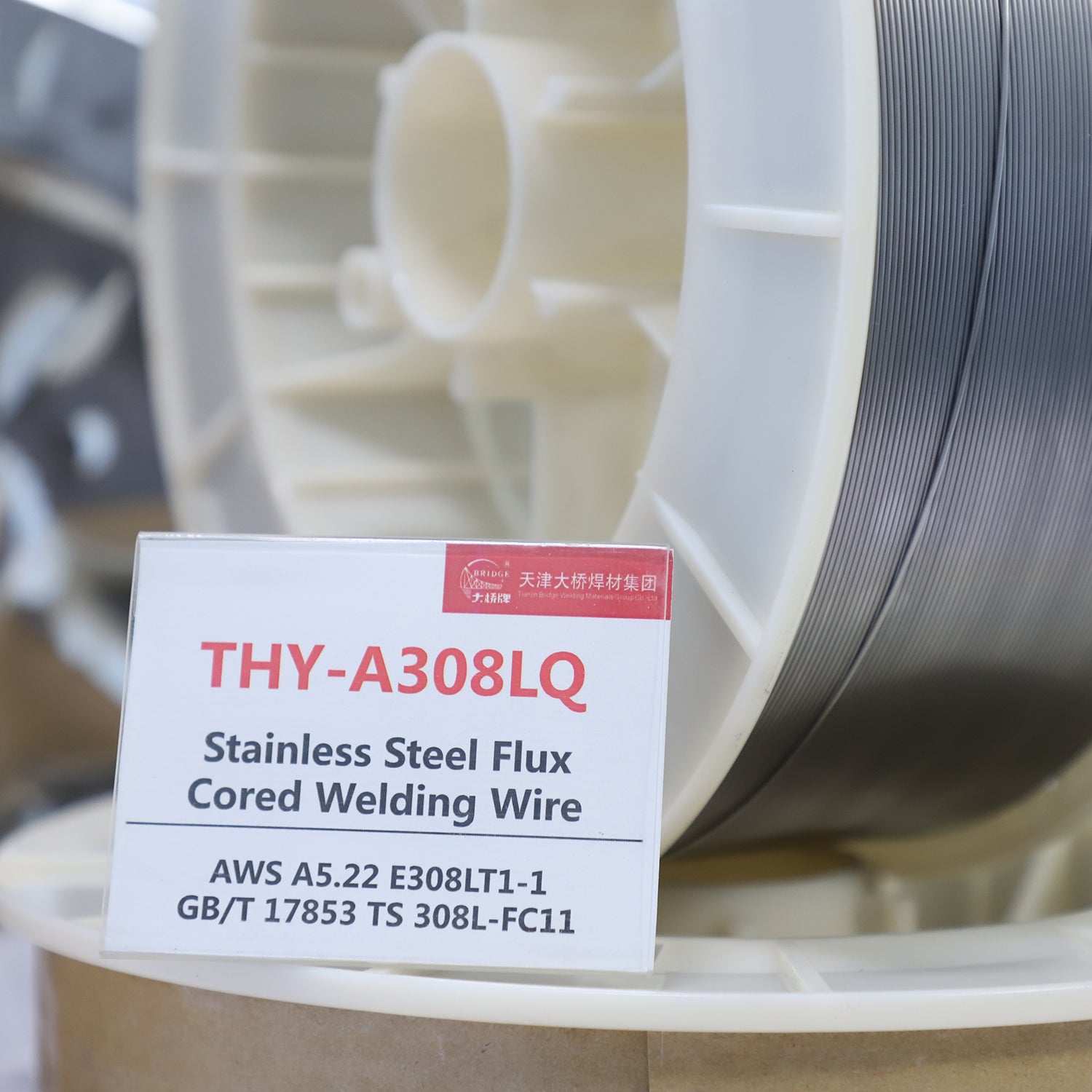

THY-A308LQ

$0.00 USD

Sale Sold out

AWS A5.22 E308LT1-1
GB/T 17853 E308L-FC11

Applications：

For welding of ultra-low carbon’s SUS304L stainless steel, also can be used for SUS321 and other corrosion resistant stainless steel structure.

Characteristics:

THY-A308LQ is stainless steel flux cored wire with ultra-low carbon. Can be weld for all position by DC+ only. It have excellent welding performance as good arc stiffness, little spatter, easy slag removal etc., and perfect intercrystalline corrosion resistance of deposited metal.

Attention:

1. Wire extention is 20mm, shield gas flow should be in 20L/min to 25L/min.

2. Interpass temperature is lower than 120℃

Chemical Composition of All Weld Metal：(Wt. %)

Items	C	Mn	Si	S	P	Ni	Cr	Mo	Cu
Require-ments	≤0.04	0.5-2.5	≤1.00	≤0.03	≤0.04	9.0-12.0	18.0-21.0	≤0.5	≤0.5
Typical Results	0.03	1.51	0.66	0.013	0.027	10.16	19.85	0.13	0.10
