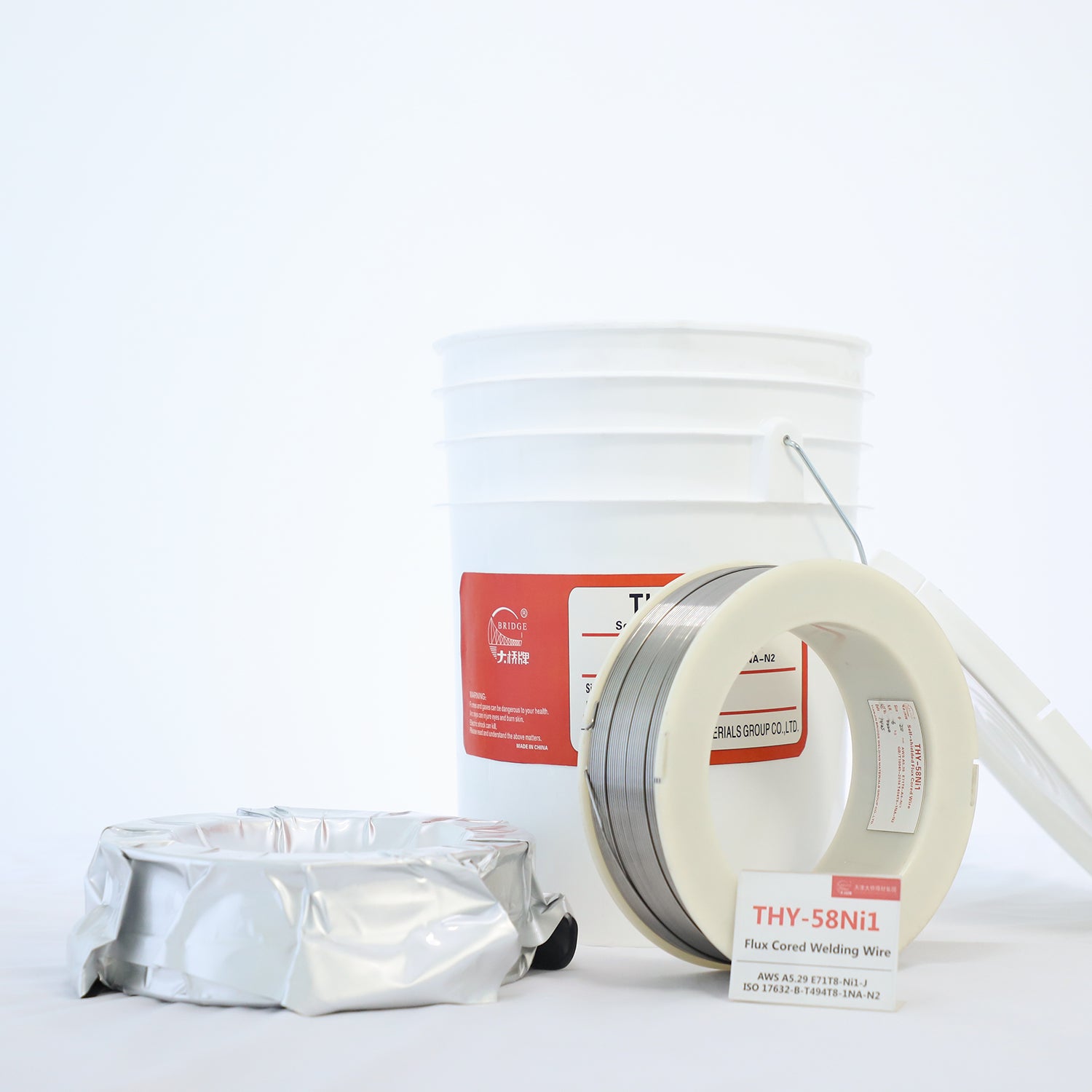

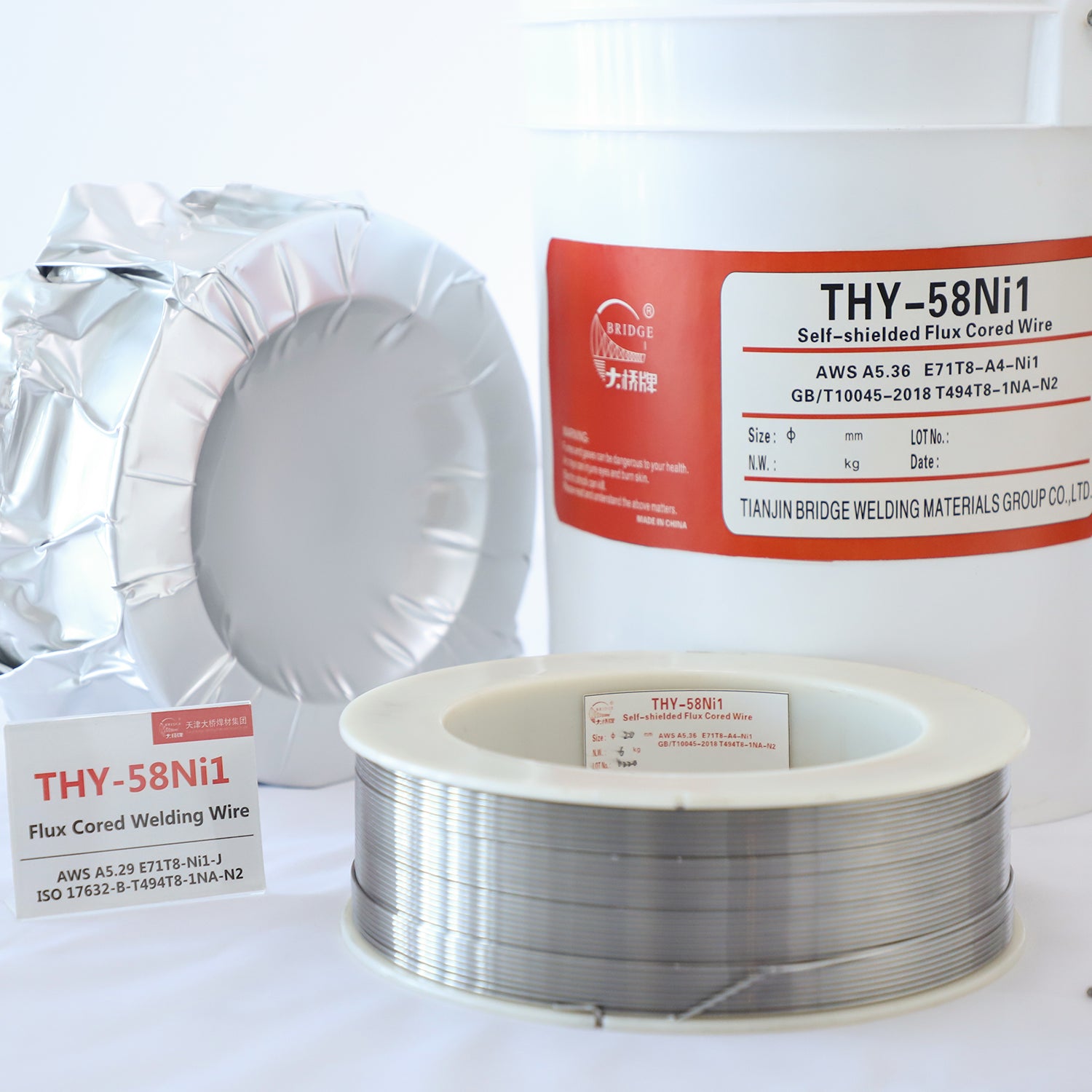

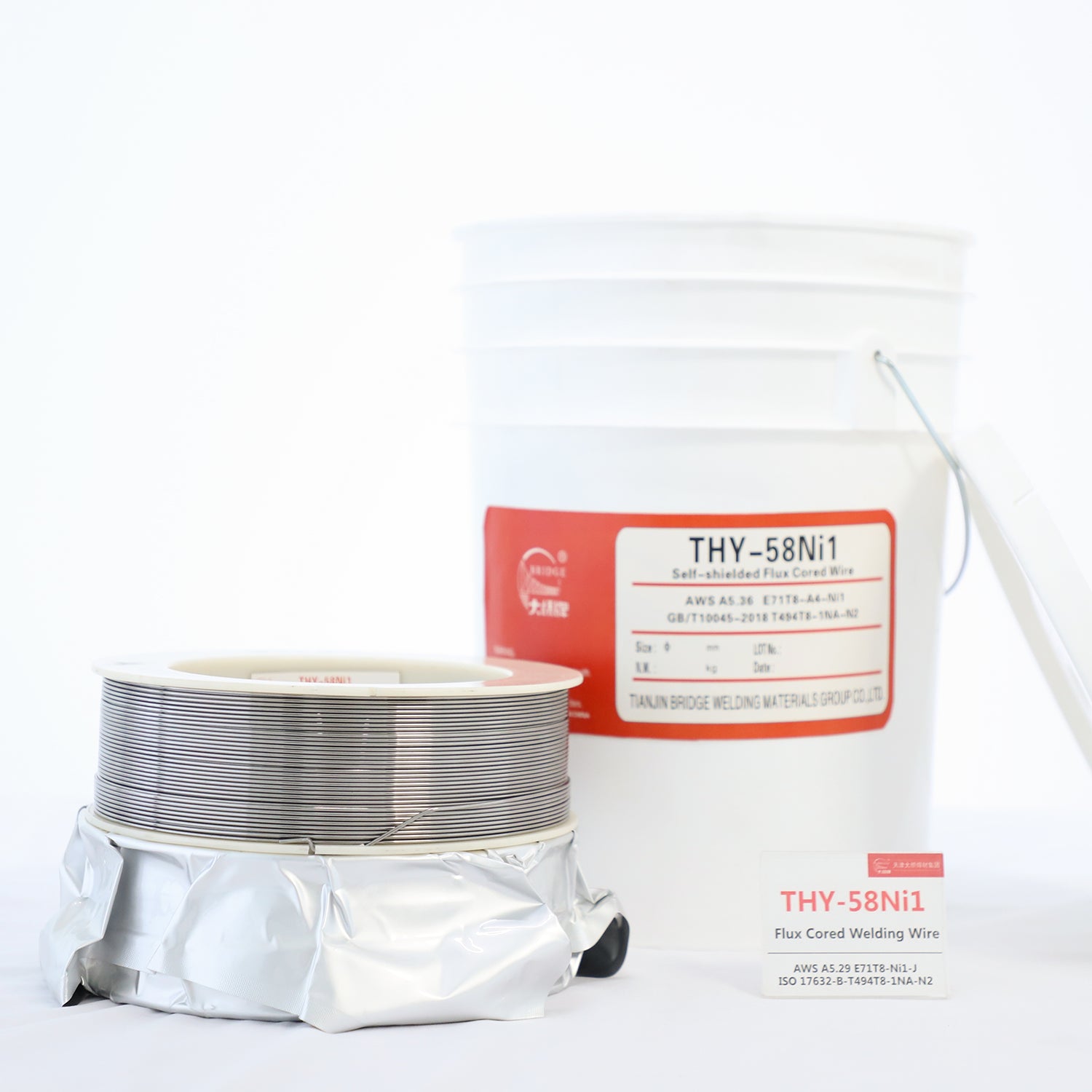

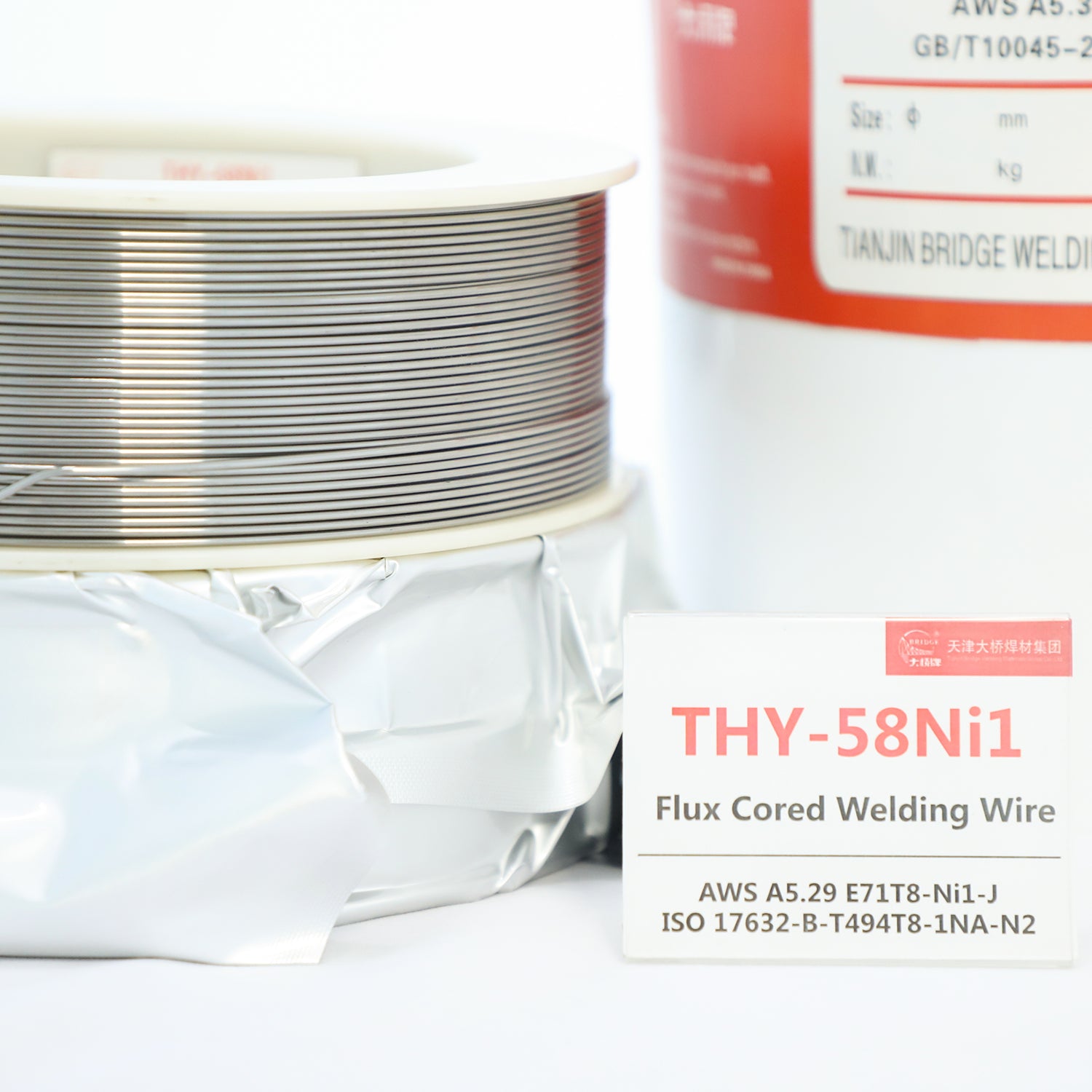

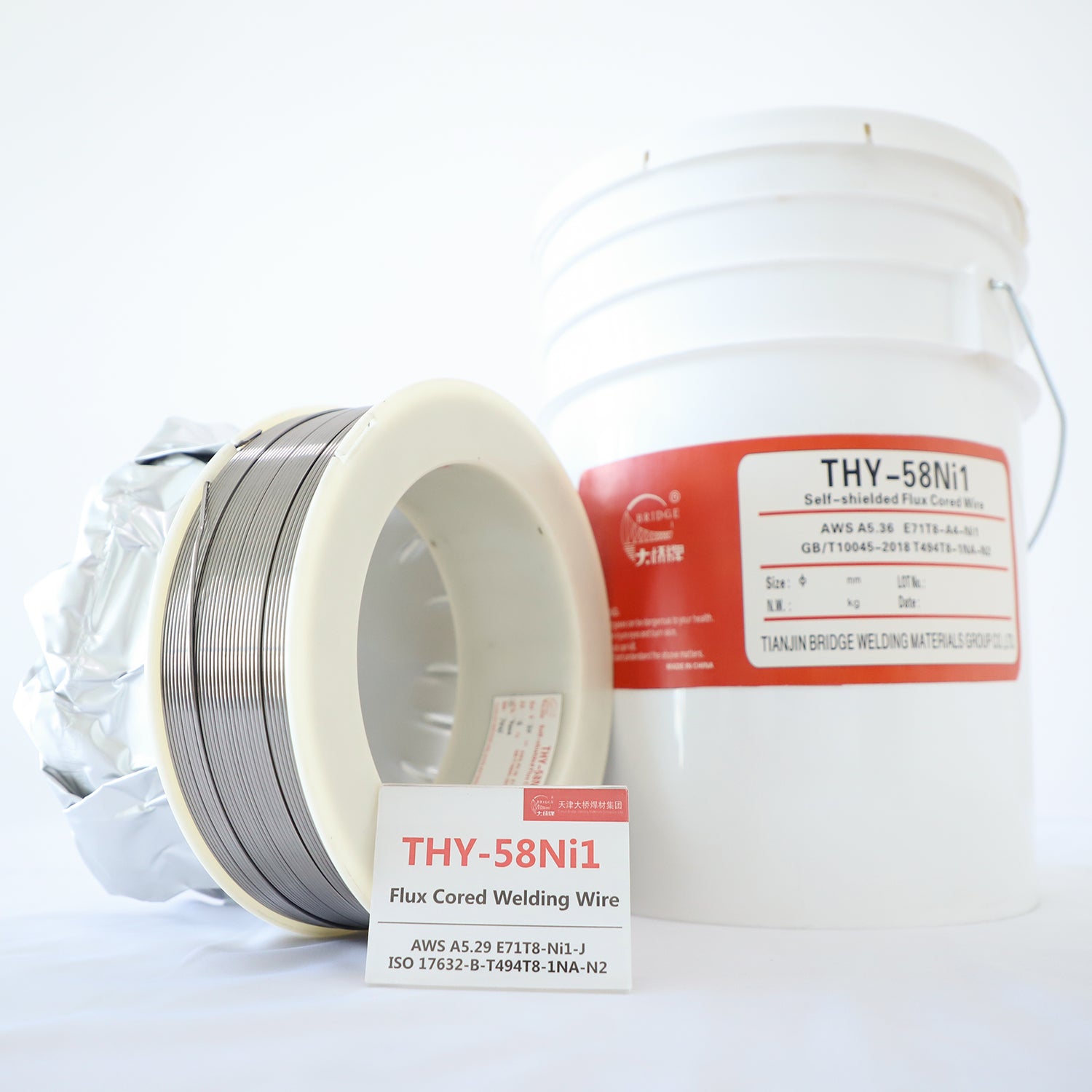

THY-58Ni1
THY-58Ni1
AWS A5.29 E71T8-Ni1-J (mod.)
ISO 17632-B-T494T8-1NA-N2
GB/T 10045 T494T8-1NA-N2
Application:
Applying for the outdoor welding of RM 500MPa level carbon steel such as pipeline of API X52 to X70, also for offshore platform and large oil storage tank etc.
Characteristic:
This wire is self-shielded flux cored wire, can be weld for all position (especially suitable for welding position of PG). Excellent process performance. Stronger arc, less spatter, the arc is stable and soft, effortless slag removal.
Attention:
1. Weld by DC+ only
2. Wire extention is 20mm
Chemical Composition of All Weld Metal: (Wt. %)
Item |
C |
Mn |
Si |
S |
P |
Ni |
Al |
Typical Results |
0.03 |
0.87 |
0.03 |
0.004 |
0.011 |
0.94 |
0.94 |
Mechanical Properties of All Weld Metal:
Item |
Rel/Rp0.2/MPa |
Rm/MPa |
A/% |
KV2(-40℃)/J |
Typical Results |
426 |
495 |
29 |
170 |
