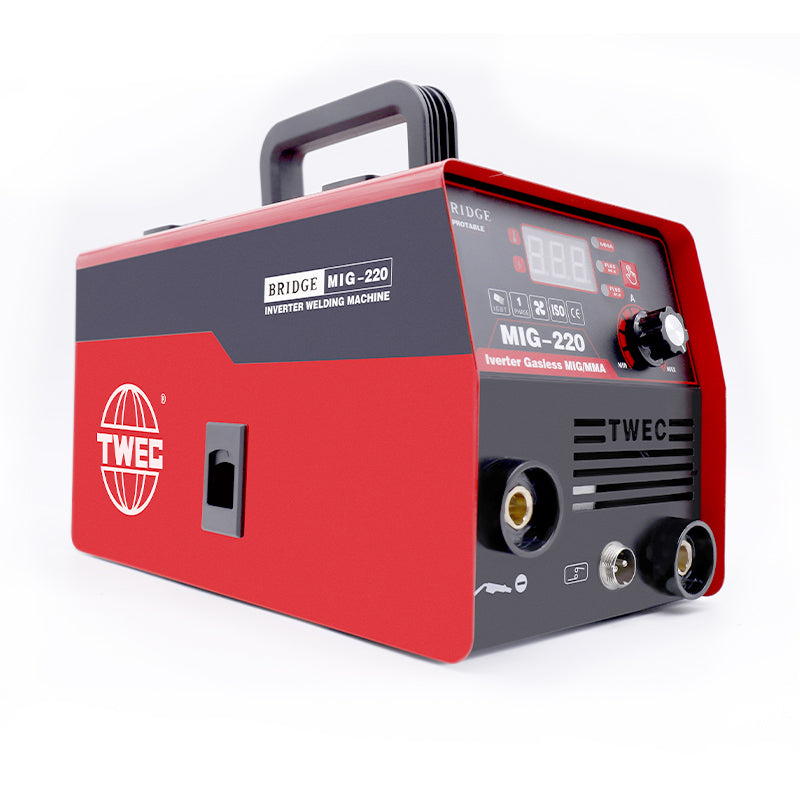

IGBT Inverter Welder MIG-220
by BRIDGE BRAND
Save 65%
Original price
$120.00
Original price
$120.00
-
Original price
$120.00
Original price
$120.00
Current price
$42.00
$42.00
-
$49.00
Current price
$42.00
- This is an easy-to-use MIG welding machine suitable for both hobby and professional use. Before using or doing any maintenance work on the machine, please read the operating manual and keep it for further reference.
- This machine has the functions of Gasless and MMA.
- IGBT power device with unique control mode improves the reliability of machine.
- High duty cycle ensures long time operation.
- Closed loop feedback control, constant voltage output, workable under mains voltage fluctuation within ±10%.
- Adjustable welding voltage and current, excellent welding performance.
- Adopting unique welding dynamic characteristic control circuit in Gasless, stable arc, little spatter, beautiful weld bead, high efficiency.
- Removing tip ball after welding; high no-load voltage and soft start wire feeding result in high successful rate of arc ignition.
- Stable welding current in MMA, excellent arc ignition.
-

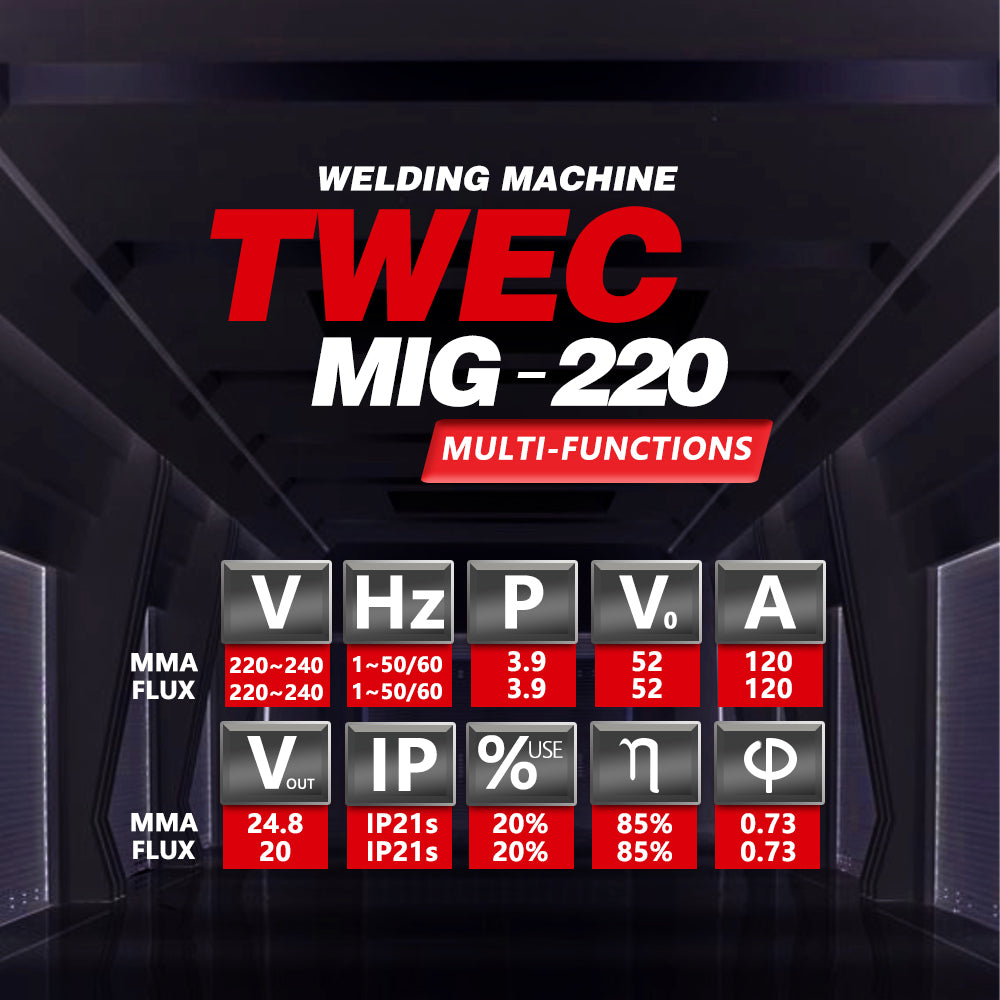

MODEL
MIG-220
Power Voltage(V)
1ph AC220±10%
Rated input power(KVA)
3.9
Input Voltage Frequency(Hz)
50/60Hz
Max. input current (A)
17.6A
Rated max. output
MMA:120A/24.8V
MIG:120A/20V
Current range(A)
MMA:20-120A
MIG:40-120A
No-load voltage(V)
52V
Rated duty cycle
20%
Efficiency
85%
Power factor
0.73
Protection class
IP21S
Insulation class
F
Usable Electrode(MM)
MMA:1.6-3.2
MIG:0.8-1.0
