THM-43A

THM-43A

$0.00 USD
$0.00 USD
Sale Sold out

AWS A5.17 EM12
GB/ T5293 SU26

Applications:

It is suitable for the welding of Rm 430MPa level carbon steel structure, such as SA-36/Gr.D, and so on.

 Characteristic:

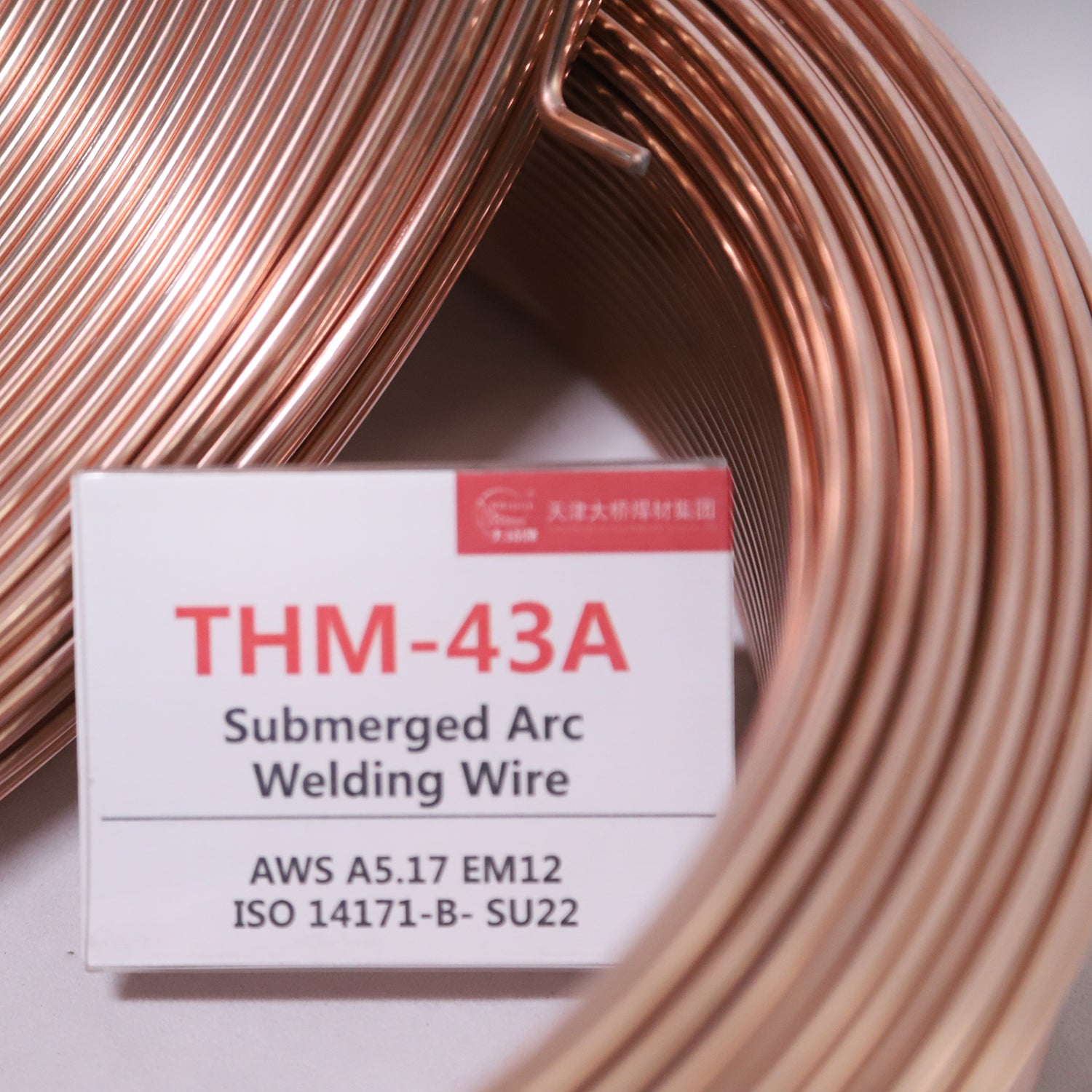

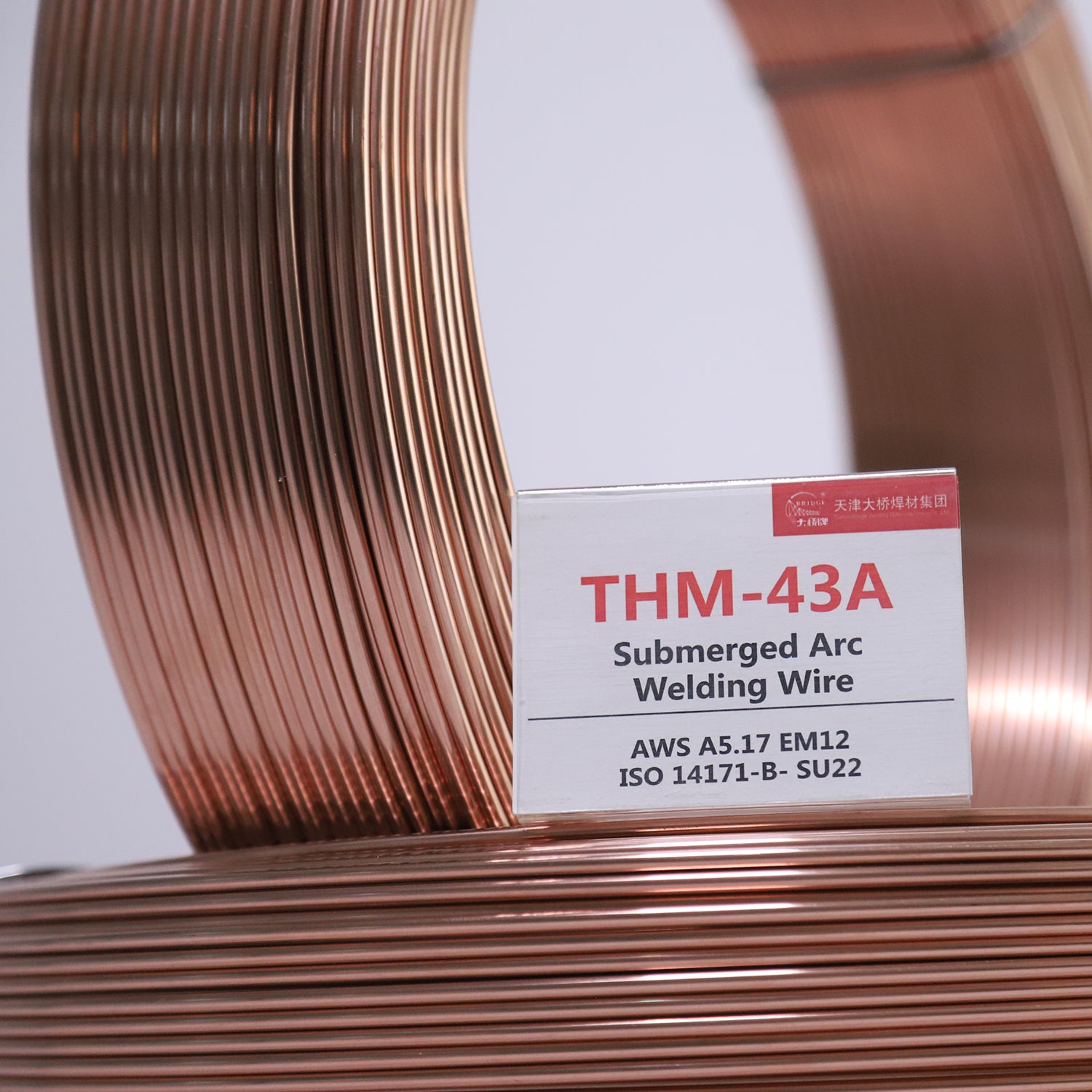

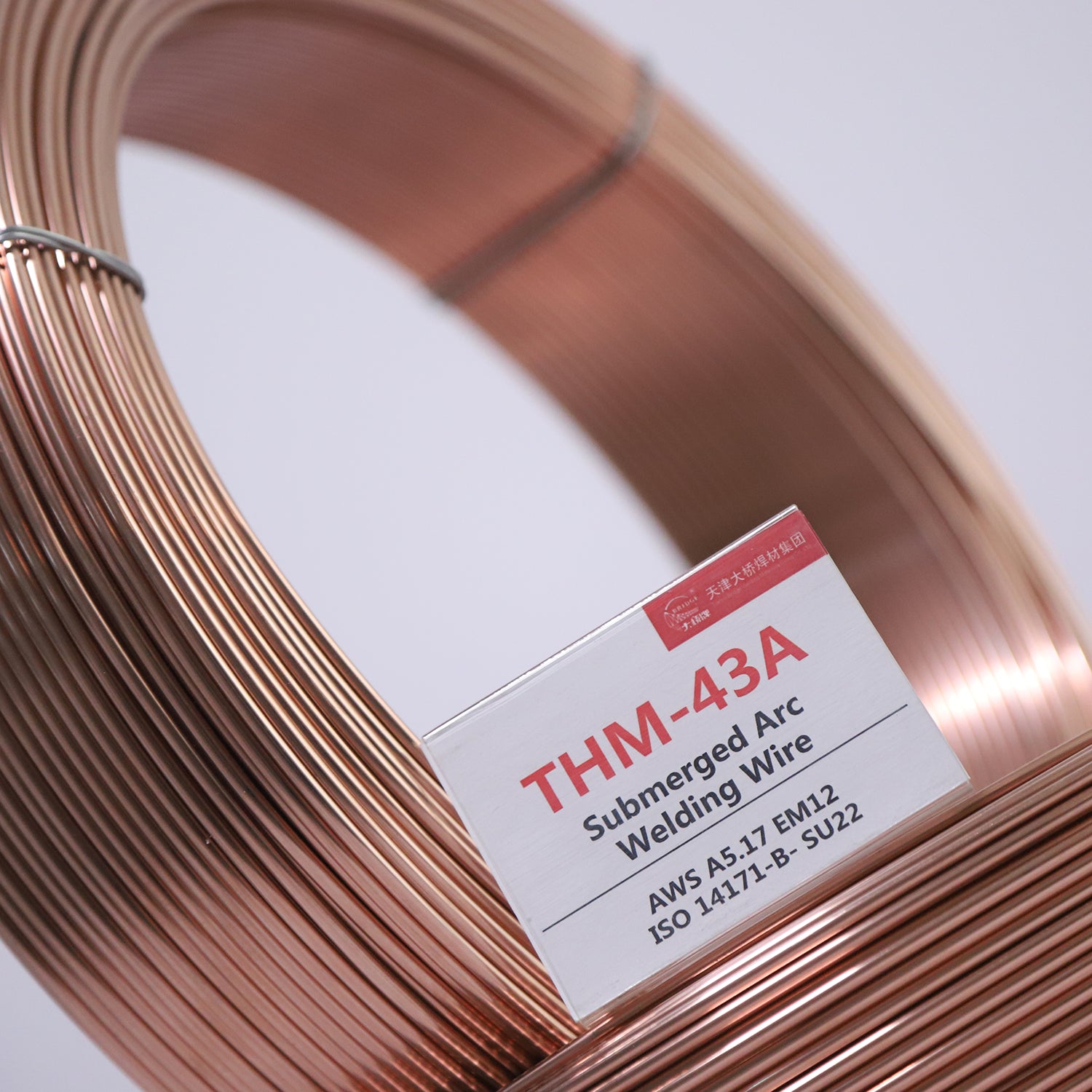

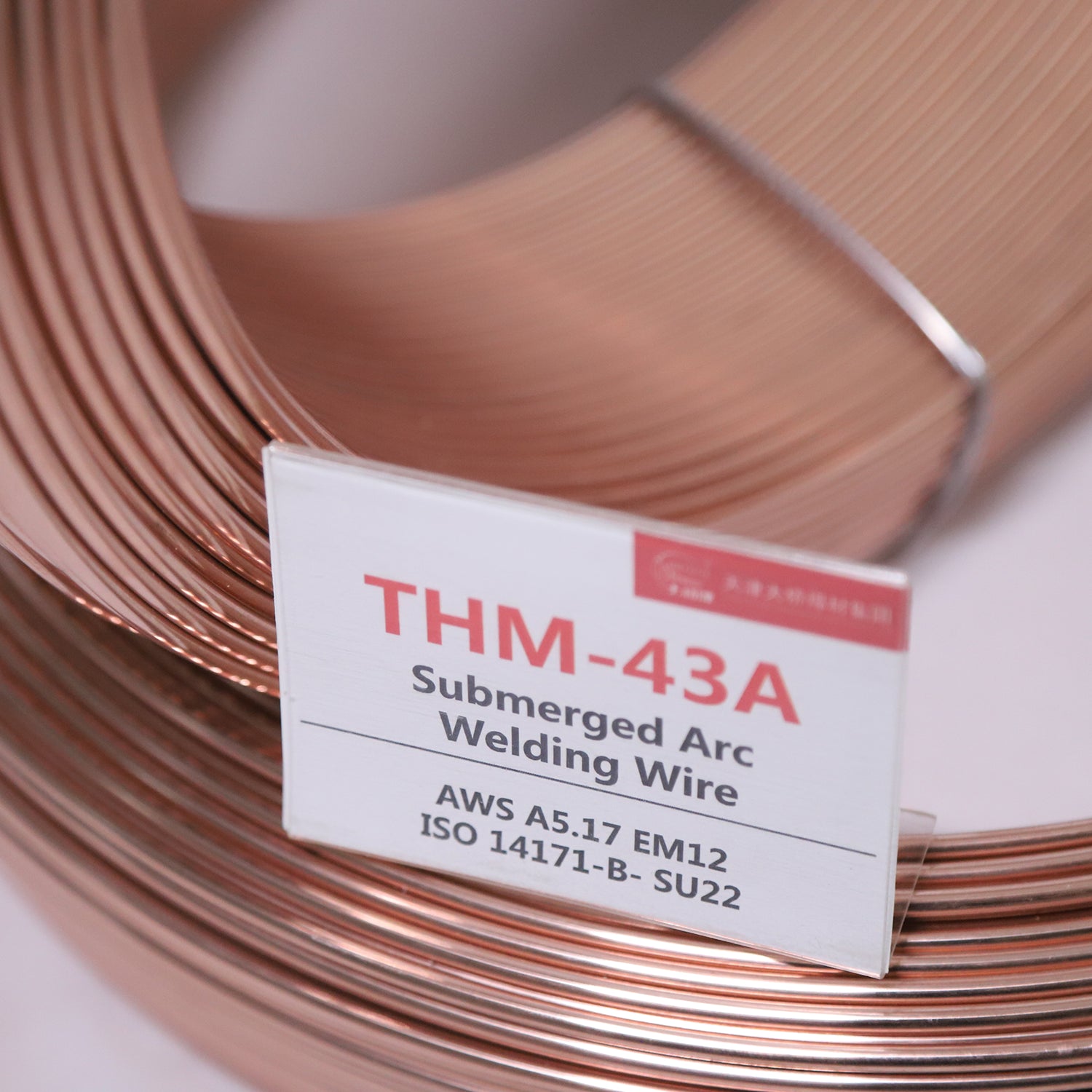

THM-43A is copper coated solid wire, and it can be used in automatic submerged arc welding with welding flux. The weld metal has excellent mechanical properties.

 Attention:

1. The rust, oil, water and other impurities of the weld area must be removed before welding.

2. The mechanical properties of all weld metal be decided by heat input, normally the small heat input will better than larger one.

 Chemical Composition of Wire:  (Wt. %)

Item

C

Mn

Si

S

P

Cr

Ni

Cu

Requirements

≤0.10

0.80-1.10

≤0.07

≤0.030

≤0.030

≤0.20

≤0.30

≤0.35

Typical Results

0.08

0.95

0.02

0.011

0.015

0.01

0.01

0.10

 Mechanical Properties of All Weld Metal

(TH.SJ101/THM-43A):

Items

Rm/MPa

Rel/Rp0.2 /MPa

A%

KV2 (-20℃) /J

Requirement

430-600

≥330

≥20

≥27

Typical Results

475

380

30

110

 Normal Diameter of Wire:

Size（mm）

2.0

2.5

3.2

4.0

5.0

 Classification of Society Certification:

Ship inspection agency

CCS

Level of recognition

3TM
