THJ506 (E7016)
E7016 Low-Hydrogen Carbon Steel Welding Electrodes | High Strength
Certificates:
ABS
BV
CCS
DNV
KR
LR
NK
Application
- Shipbuilding
- Pressure Vessel
- Energy Industry
- Heavy Machinery
DETAILS
Low-Hydrogen Carbon Steel Welding Electrodes for High-Strength Steel
Features
- Low-hydrogen potassium coating providing superior crack and X-ray resistance
- AC and DCEP dual-purpose versatility with excellent arc stability
- All-position welding capability with easy slag removal and minimal spatter
- Outstanding mechanical properties and low-temperature impact toughness
- Excellent bead appearance and penetration for root pass welding
Typical Applications
- Medium carbon steel and low-alloy high-strength steel structures
- Pressure vessel and industrial boiler fabrication
- Shipbuilding and offshore oil platform construction
- Bridges, heavy machinery, and structural steel frameworks
- High-pressure pipeline welding and critical load-bearing joints
Welding Positions
- PA / PB / PC / PD / PE / PF

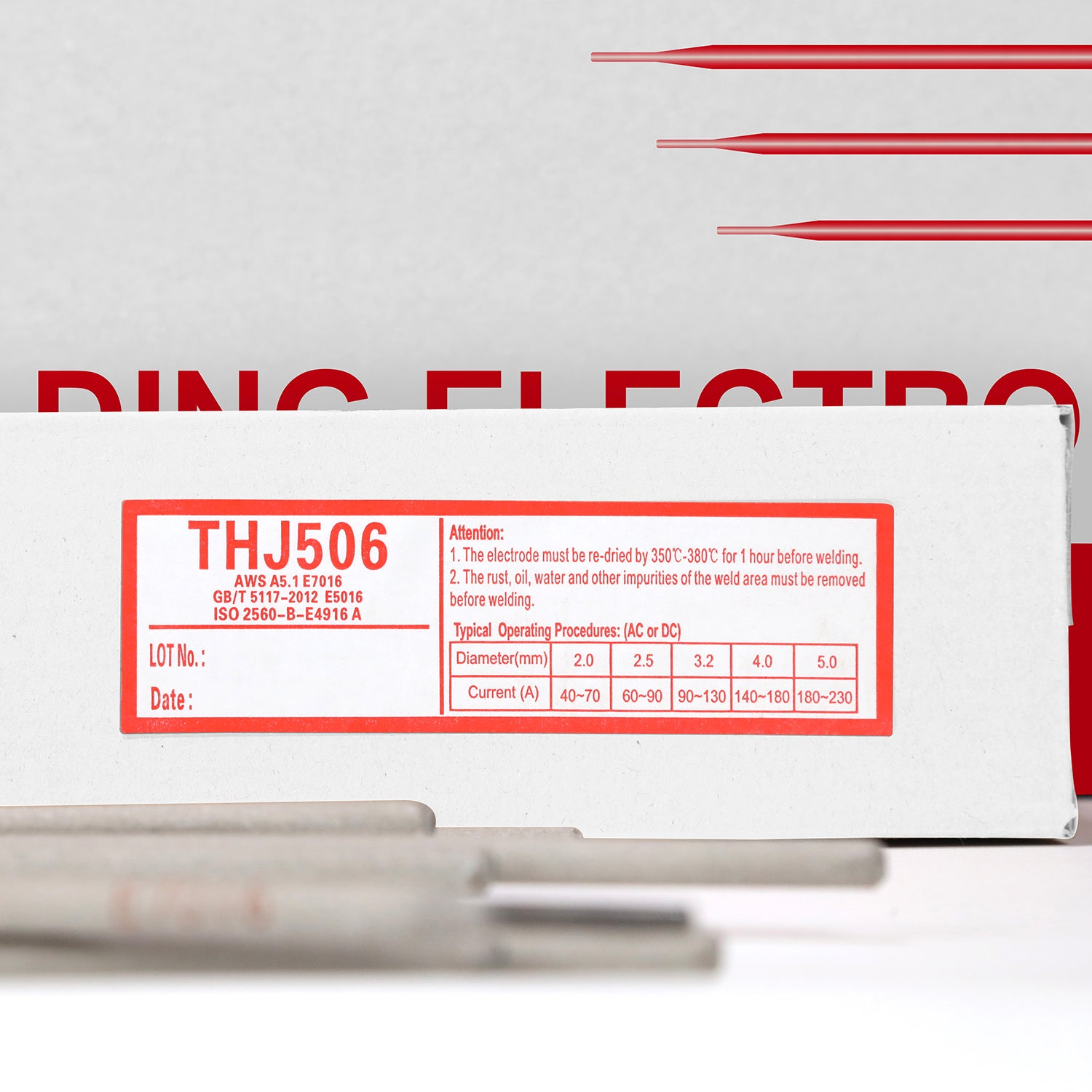

WARNING
- The electrodes must be re-dried at 350–380°C for 1 hour before welding.
- Rust, oil, moisture, and other contaminants must be removed from the weld area before welding.
| Test Item | Rm (MPa) | Rel / RP₀.₂ (MPa) | A （%） | KV₂ （J） -30℃ |
|---|---|---|---|---|
| Requirement | 490-660 | ≥400 | ≥22 | ≥80 |
| Typical Result | 590 | 510 | 30 | 160 |
| Element | C | Mn | Si | S | P | Ni | Cr | Mo | V |
|---|---|---|---|---|---|---|---|---|---|
| Requirement (%) | ≤0.10 | 0.85-1.40 | ≤0.65 | ≤0.030 | ≤0.035 | ≤0.30 | ≤0.20 | ≤0.30 | ≤0.08 |
| Typical Result (%) | 0.07 | 1.10 | 0.35 | 0.012 | 0.018 | 0.030 | 0.035 | 0.005 | 0.004 |
| Diameter (mm) | 2.0 | 2.5 | 3.2 | 4.0 | 5.0 |
|---|---|---|---|---|---|
| Current (A) | 40-70 | 60-90 | 80-130 | 140-190 | 180-230 |
