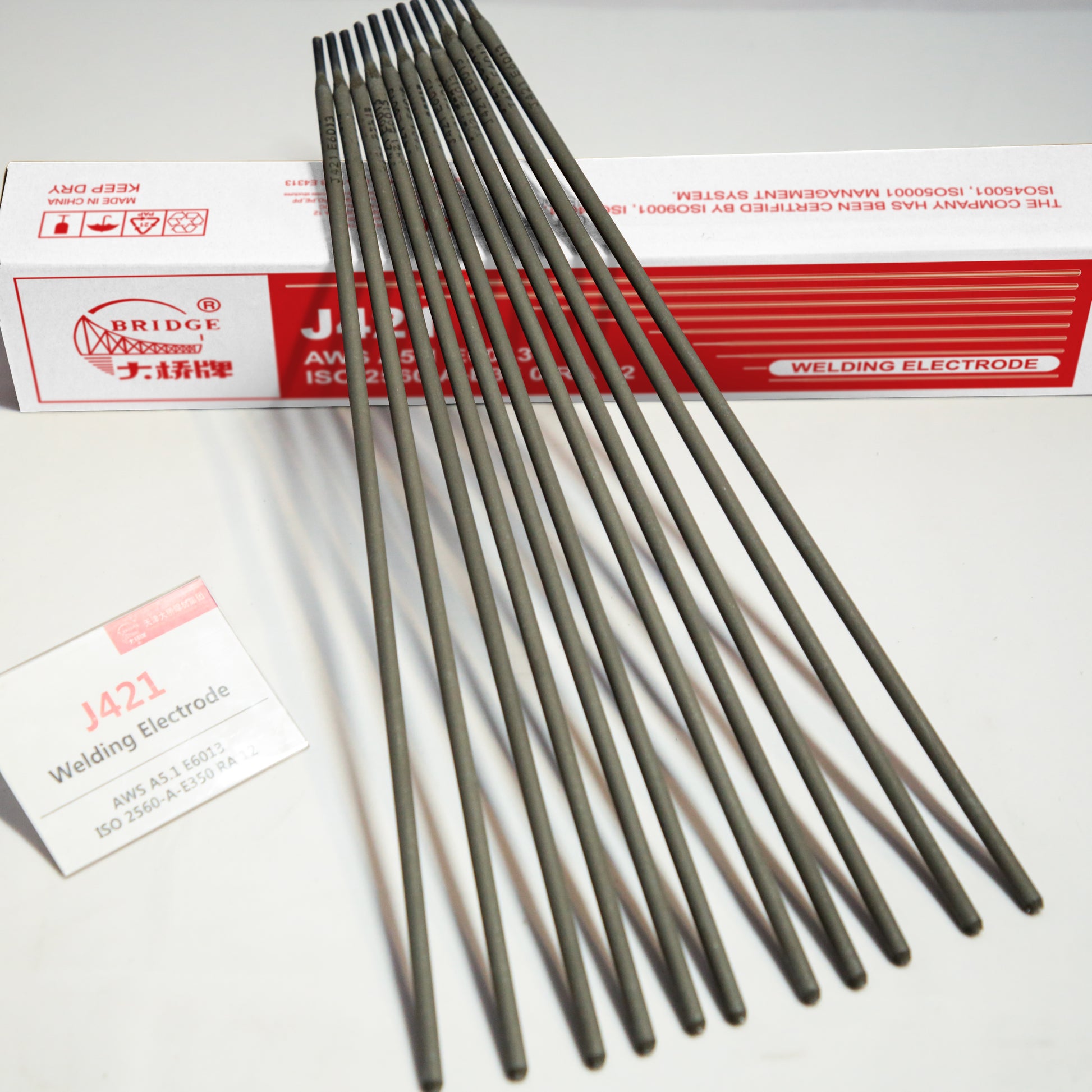

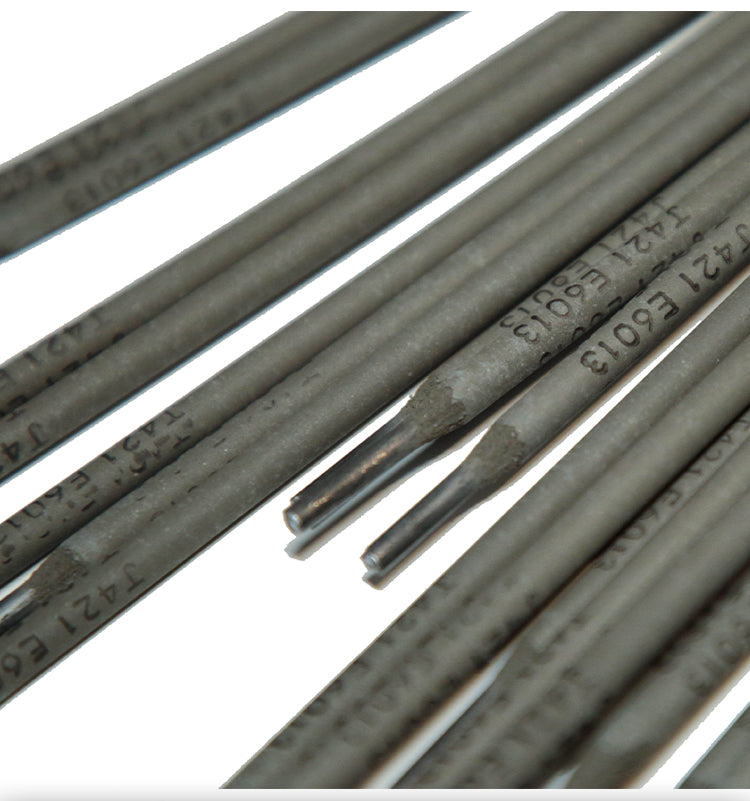

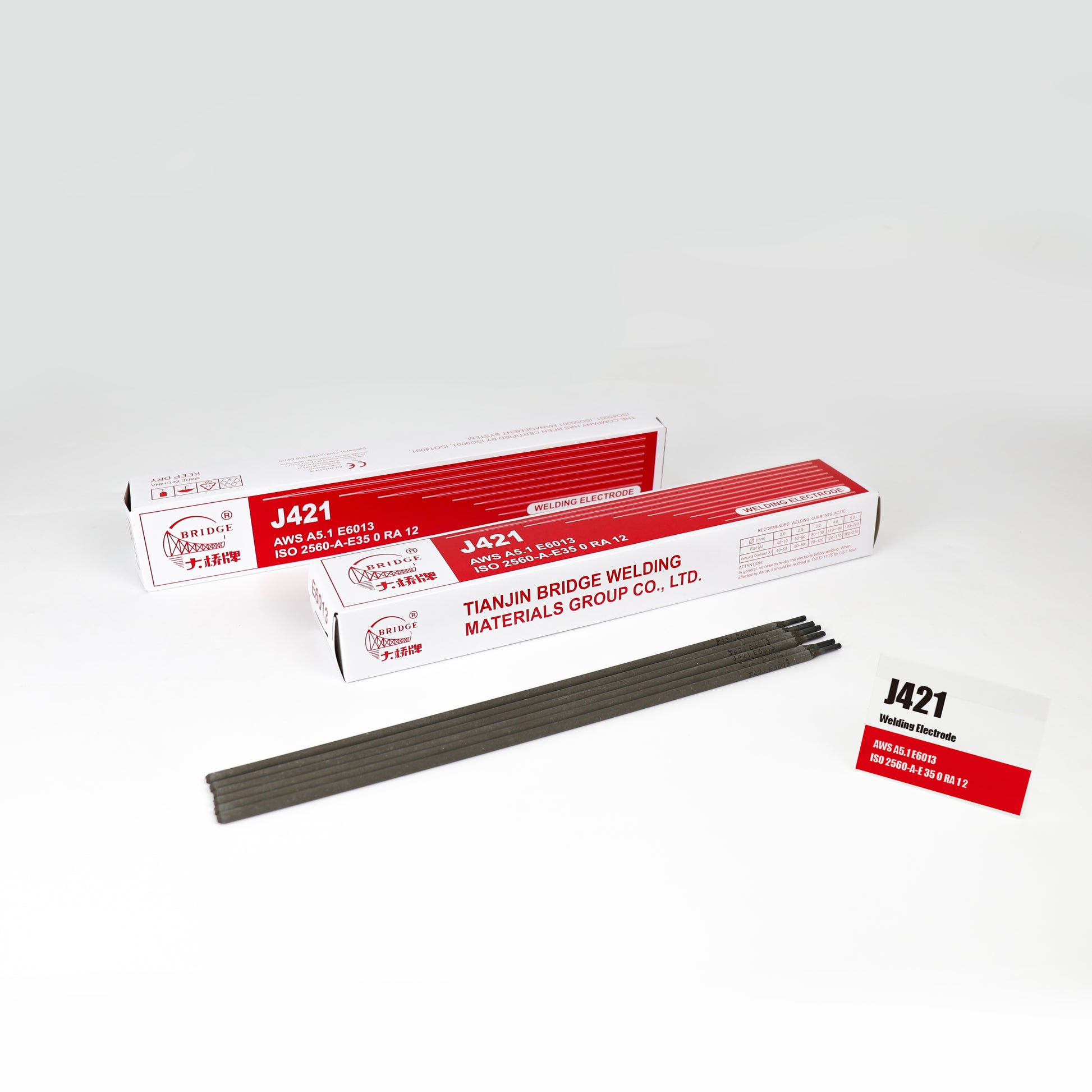

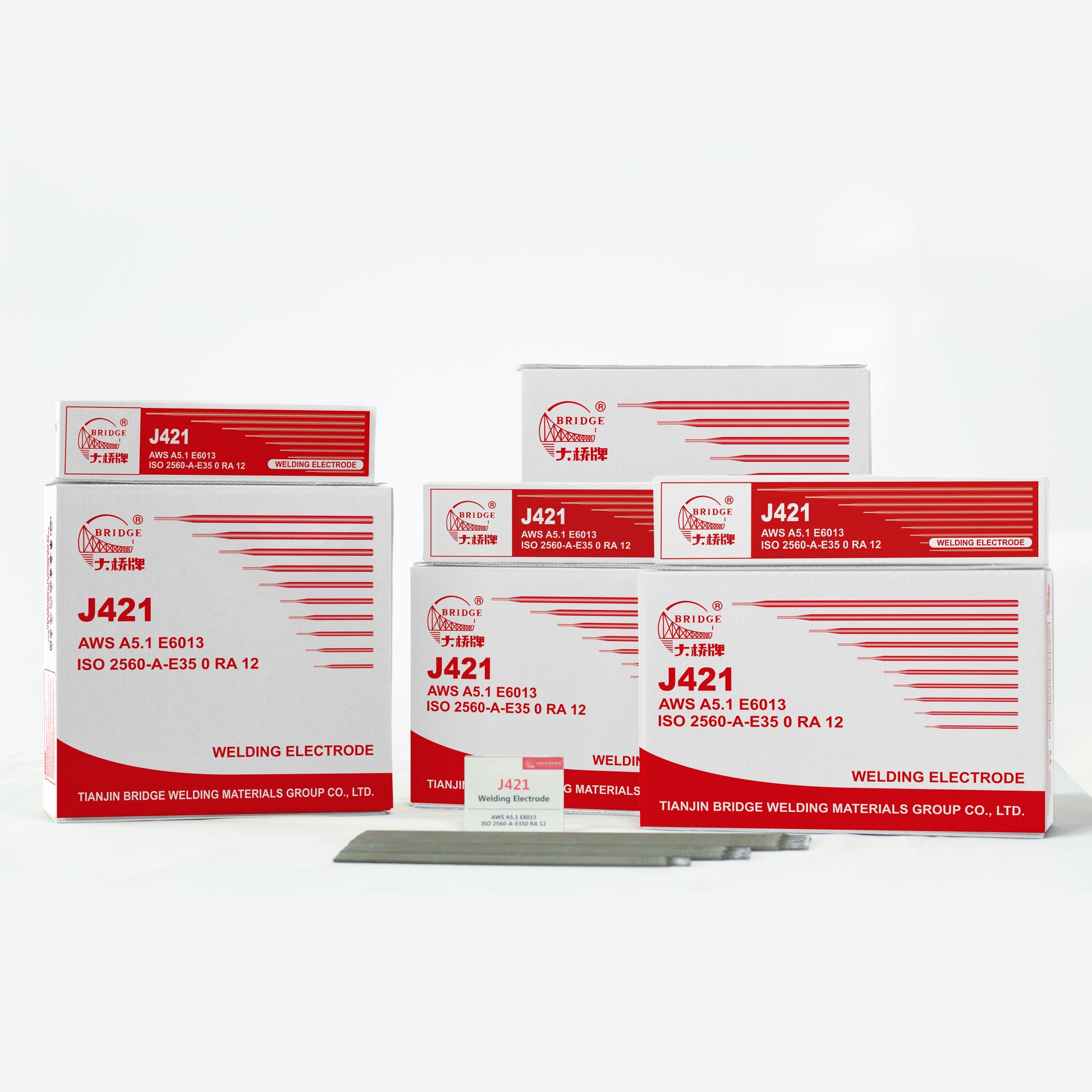

J421 (E6013)
E6013 Carbon Steel Welding Electrode | For thin mild steel.
Certificates:
ABS
BKI
BV
CCS
CWB
DNV
LR
NAKS
NK
CE
Application
- Shipbuilding
- Pressure Vessel
- Energy Industry
- Heavy Machinery
DETAILS
J421 (E6013) is a rutile-type electrode for AC or DC welding.
Features
- It offers a stable arc, low spatter, easy slag removal, and easy arc re-ignition.
- E6013 covered electrode for manual shielded metal arc welding. Suitable for AC or DC welding.
Typical Applications
- Low-carbon steel structures.
- Short, intermittent welds on thin plate where a smooth bead is required.
Welding Positions
- PA / PB / PC / PD / PE / PF
WARNING
- Re-drying is generally unnecessary. If affected by moisture, re-dry at 150–170°C for 1 hour.
| Test Item | Rm (MPa) | ReL / Rp₀.₂ (MPa) | A (%) | KV₂ (J) at 0 °C |
|---|---|---|---|---|
| Requirement | 440-560 | ≥355 | ≥22 | ≥47 |
| Typical Result | 500 | 430 | 27 | 80 |
| Element | C | Mn | Si | S | P | Ni | Cr | Mo | V |
|---|---|---|---|---|---|---|---|---|---|
| Requirement (%) | ≤0.10 | 0.32-0.55 | ≤0.30 | ≤0.030 | ≤0.035 | ≤0.30 | ≤0.20 | ≤0.30 | ≤0.08 |
| Typical Result (%) | 0.08 | 0.37 | 0.18 | 0.020 | 0.025 | 0.030 | 0.035 | 0.005 | 0.004 |
| Diameter (mm) | 2.0 | 2.5 | 3.2 | 4.0 | 5.0 |
|---|---|---|---|---|---|
| Current (A) | 40-70 | 50-90 | 80-130 | 150-200 | 180-240 |
