E6011

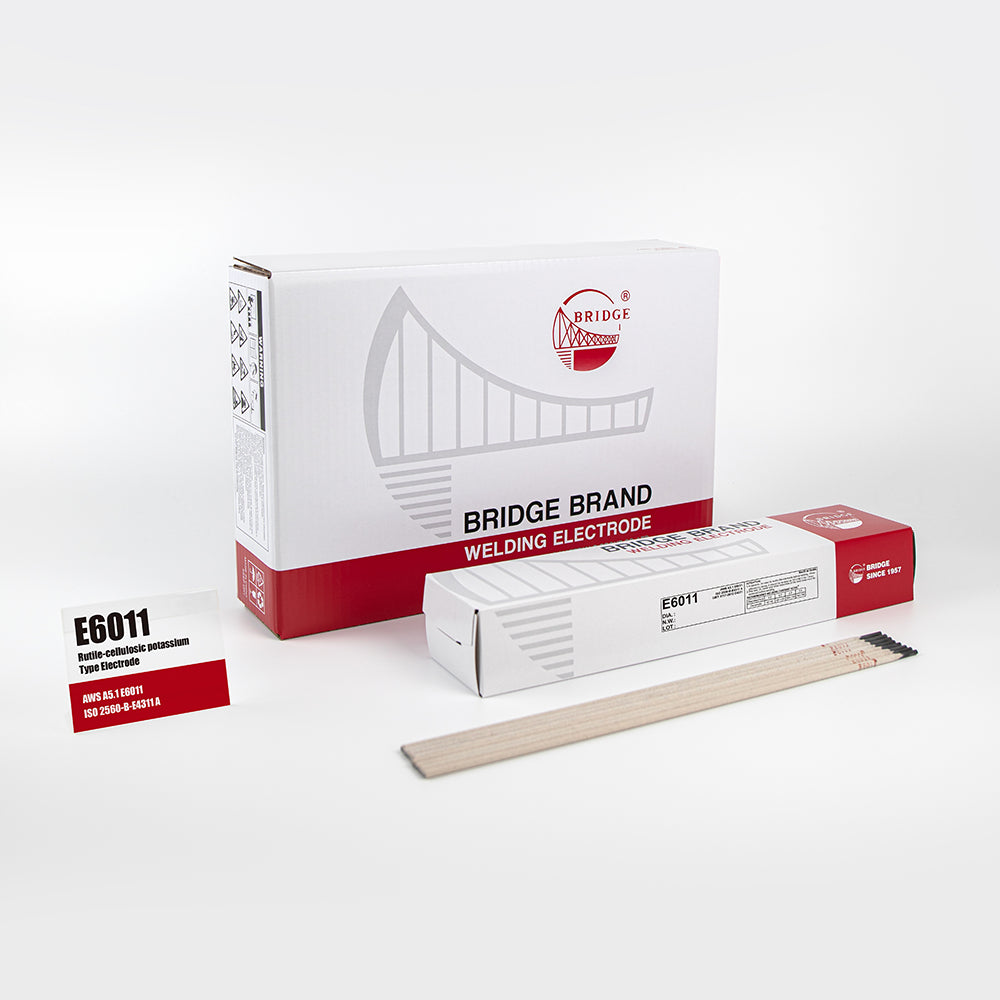

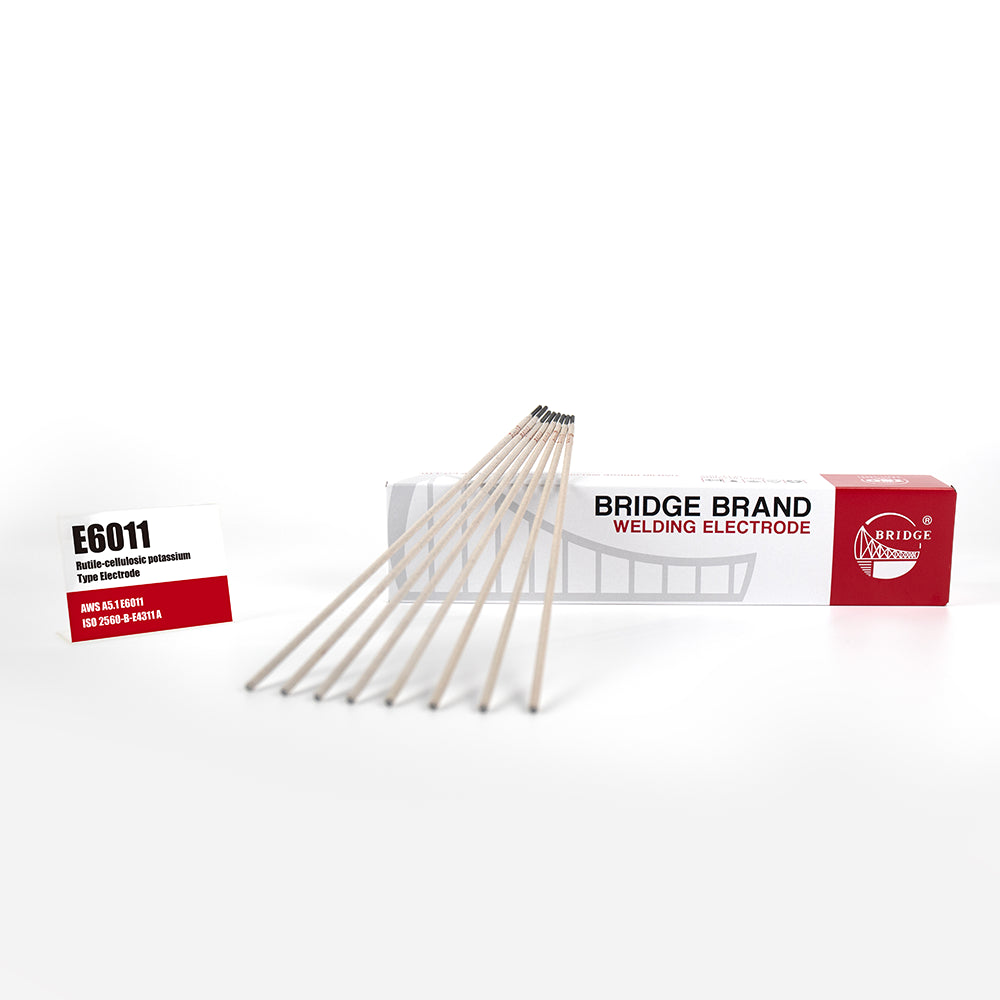

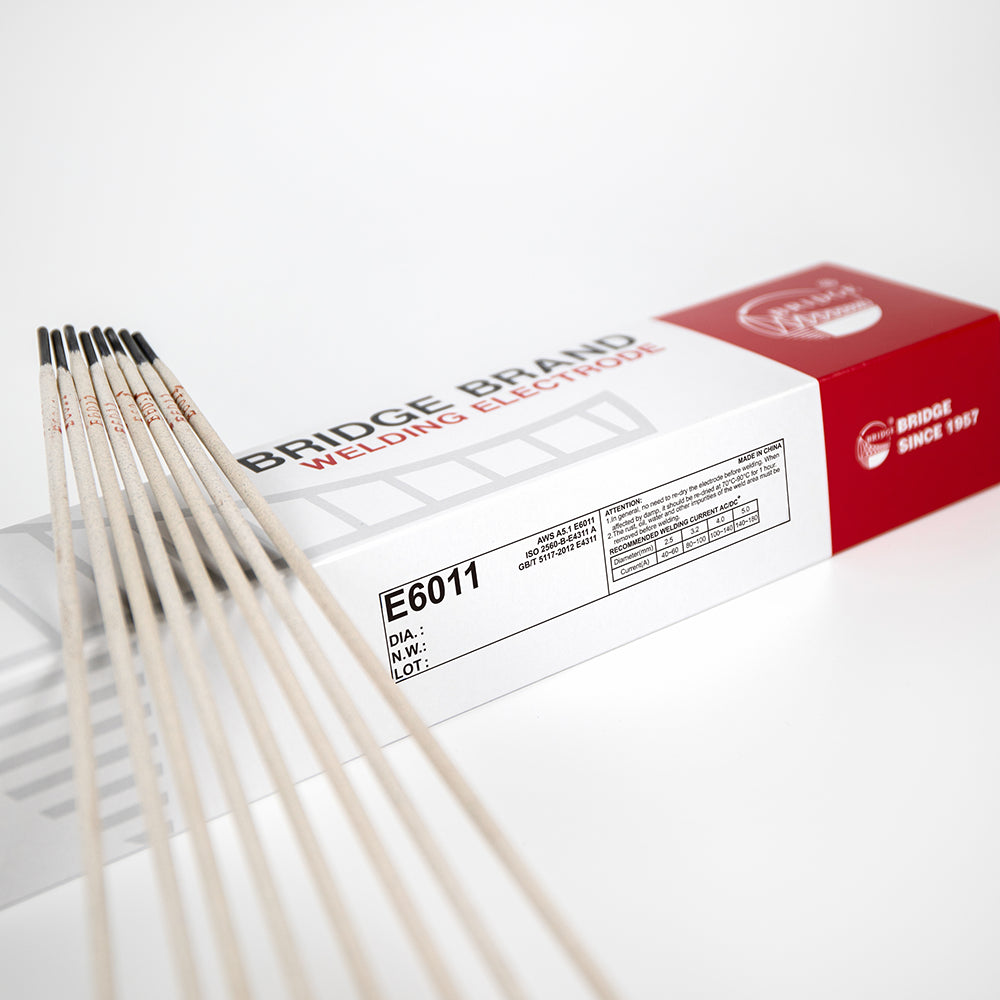

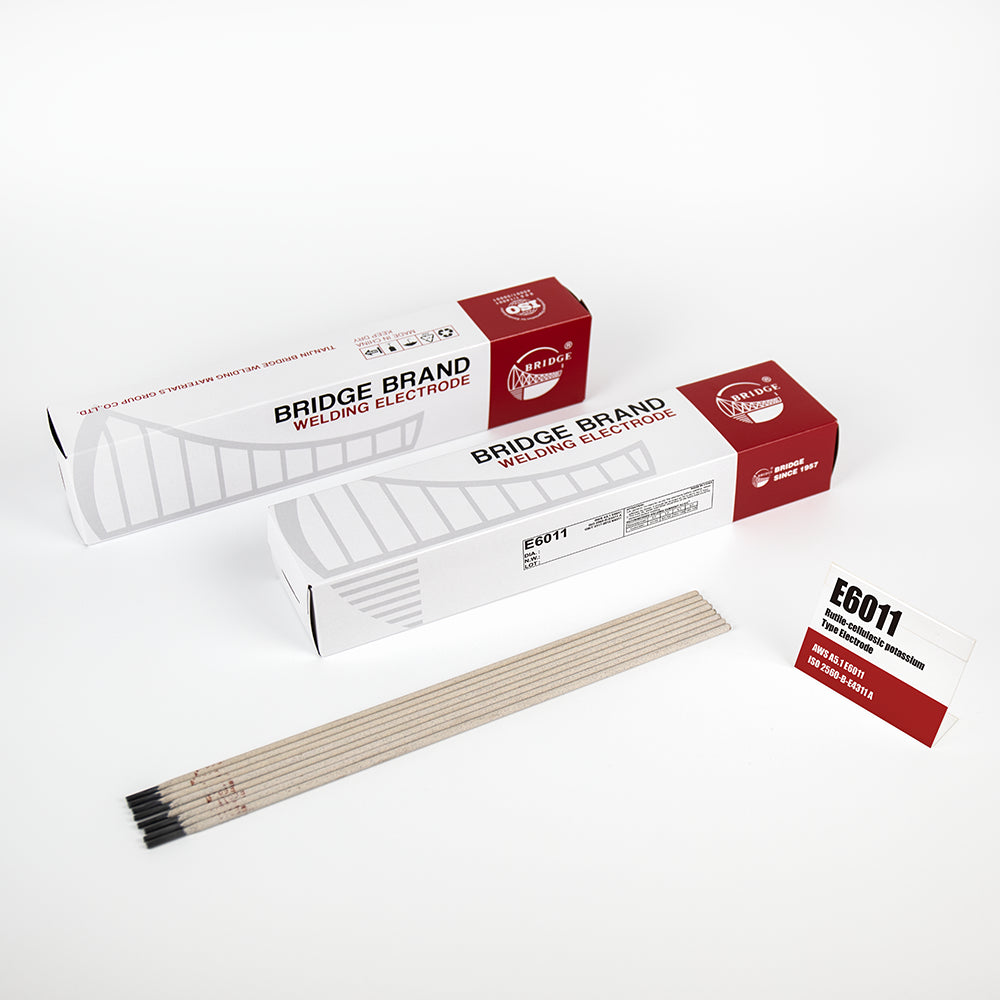

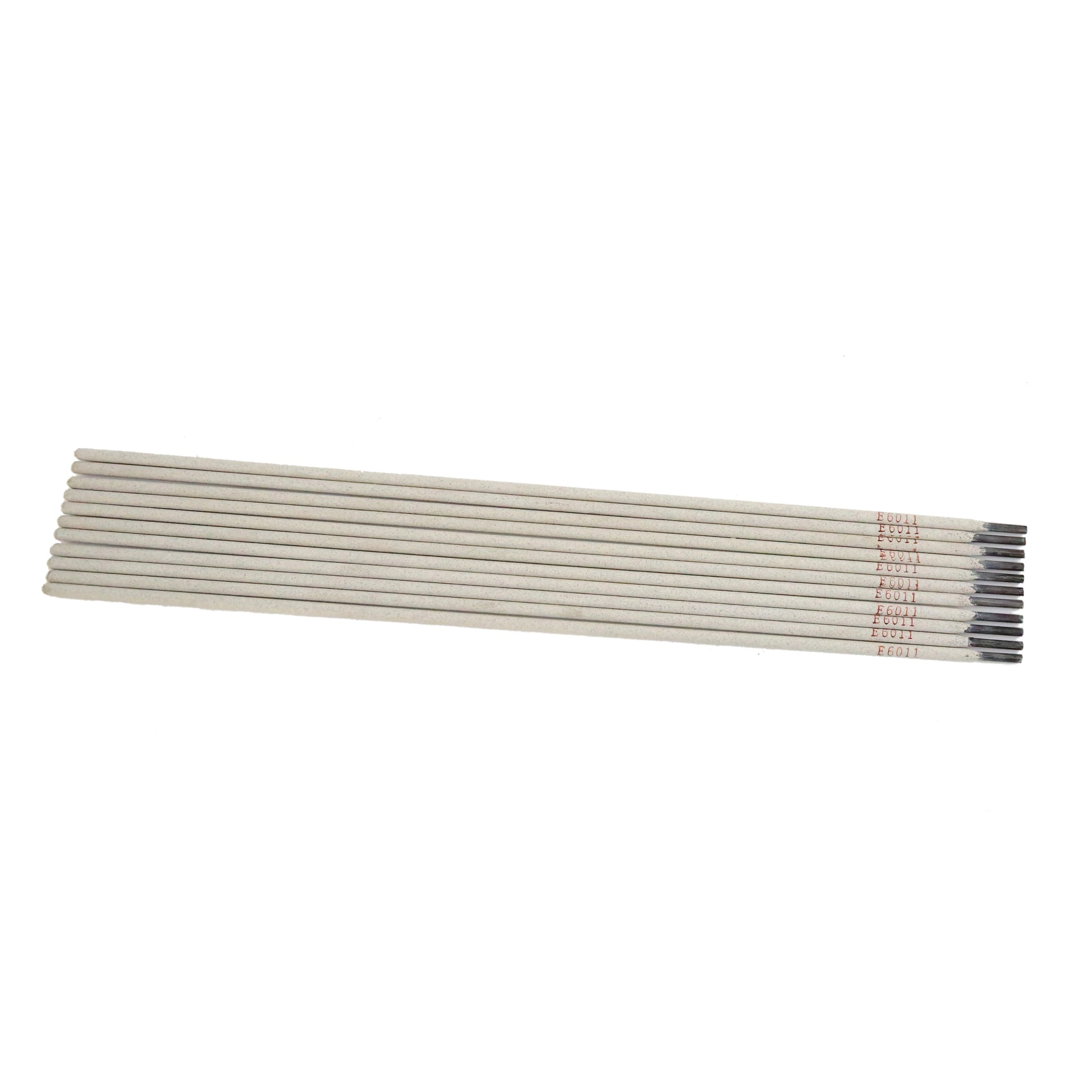

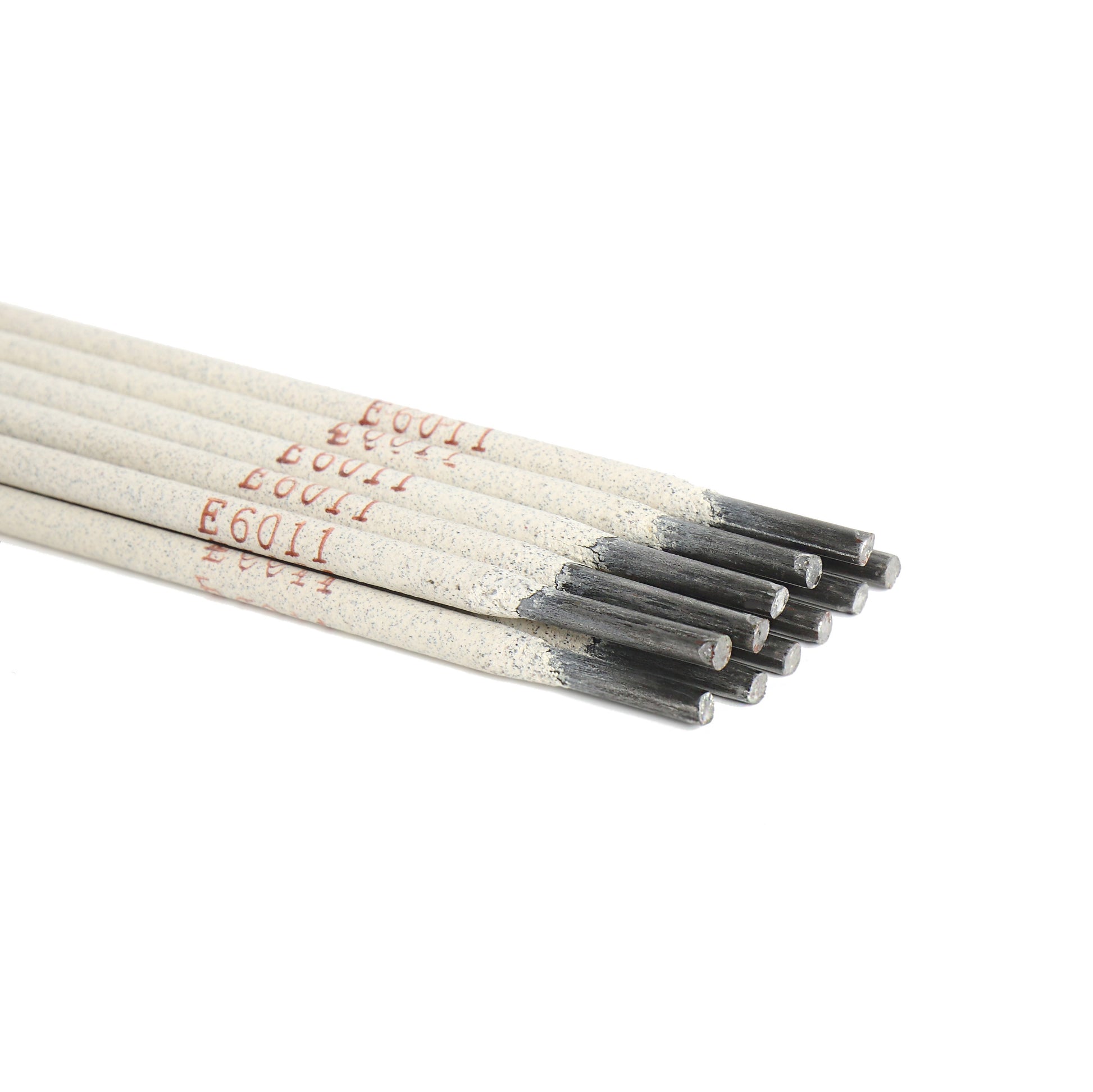

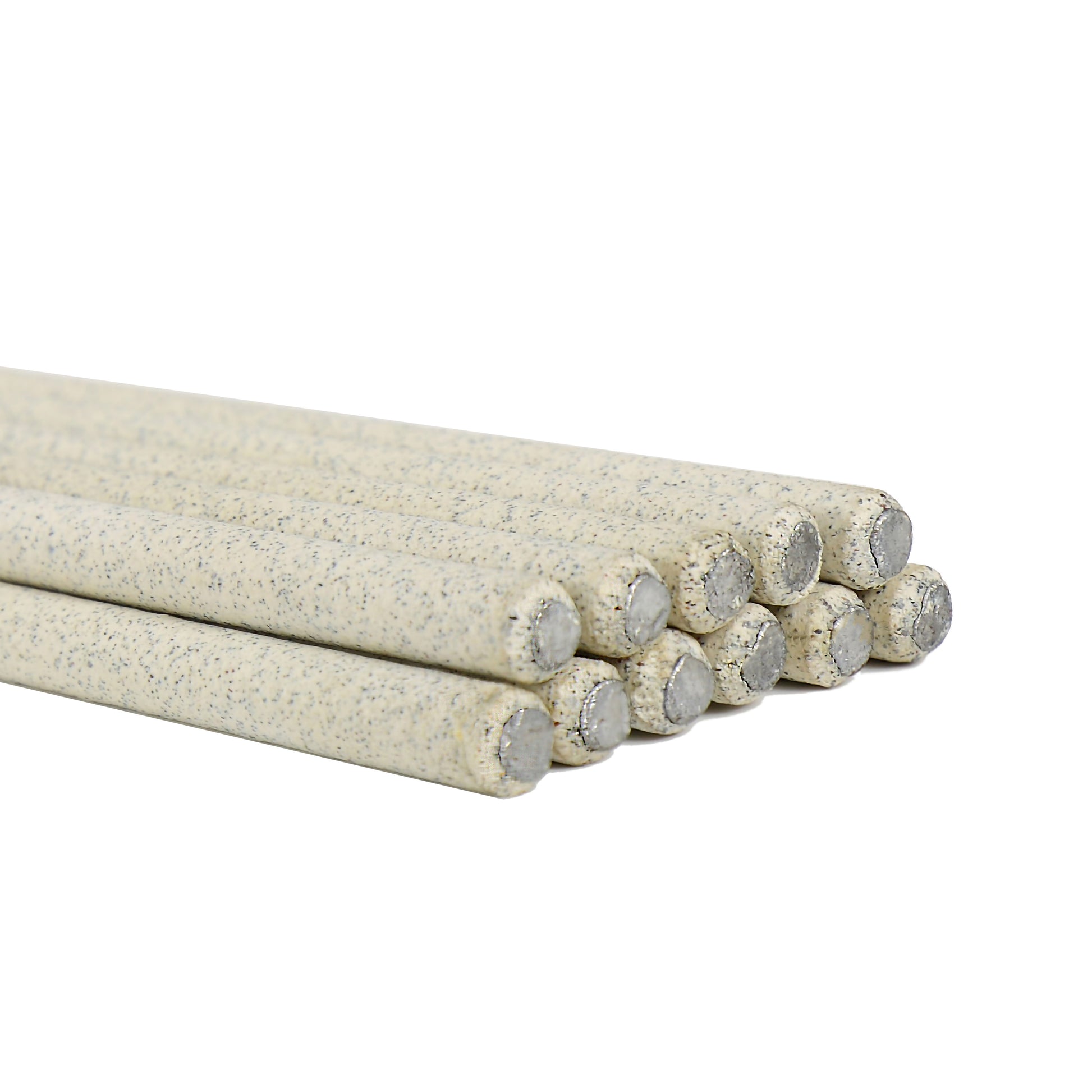

E6011 Cellulose Welding Electrodes | Deep Penetration for Mild Steel
Application
- Shipbuilding
- Pressure Vessel
- Energy Industry
- Heavy Machinery
DETAILS
Bridge Brand’s E6011 welding electrodes are high cellulose potassium-coated rods designed for all-position welding, especially suitable for vertical-up and overhead applications. These electrodes offer deep penetration and strong arc force, making them ideal for root passes, maintenance jobs.
Features
- Deep arc penetration
- All-position welding capability (including vertical-down)
- AC and DCEP versatility
- Stable arc and easy re-striking
Typical Applications
- Field repair and maintenance
- Farm equipment and machinery
- Pipe welding and root pass
- Galvanized steel fabrication
- General structural steel joining
Welding Positions
- PA / PB / PC / PD / PE / PF / PG
WARNING
- Generally, the electrodes do not need to be re-dried prior to welding. If affected by moisture, re-dry them at 70–90°C for 1 hour.
- Rust, oil, moisture, and other contaminants must be removed from the weld area before welding.
| Test Item | Rm (MPa) | Rel / RP₀.₂ (MPa) | A （%） | KV₂ （J） -30℃ |
|---|---|---|---|---|
| Requirement | ≥430 | ≥330 | ≥20 | ≥27 |
| Typical Result | 558 | 460 | 24.5 | 45 |
| Element | C | Mn | Si | S | P | Ni | Cr | Mo | V |
|---|---|---|---|---|---|---|---|---|---|
| Requirement (%) | ≤0.20 | ≤1.20 | ≤1.00 | ≤0.035 | ≤0.040 | ≤0.30 | ≤0.20 | ≤0.30 | ≤0.08 |
| Typical Result (%) | 0.09 | 0.70 | 0.30 | 0.020 | 0.018 | 0.030 | 0.035 | 0.005 | 0.004 |
| Diameter (mm) | 2.5 | 3.2 | 4.0 | 5.0 |
|---|---|---|---|---|
| Current (A) | 40-60 | 80-100 | 100-140 | 150-200 |
