E316L-16
E316L-16
AWS A5.4 E316L-16
ISO 3581-B-ES316L-16
GB/T 983 E316L-16
Applications：
Mainly used in the welding for SUS316L stainless steel of urea tower, petrochemical equipment and other equipment as well as the same type of stainless steel structure.
Characteristics:

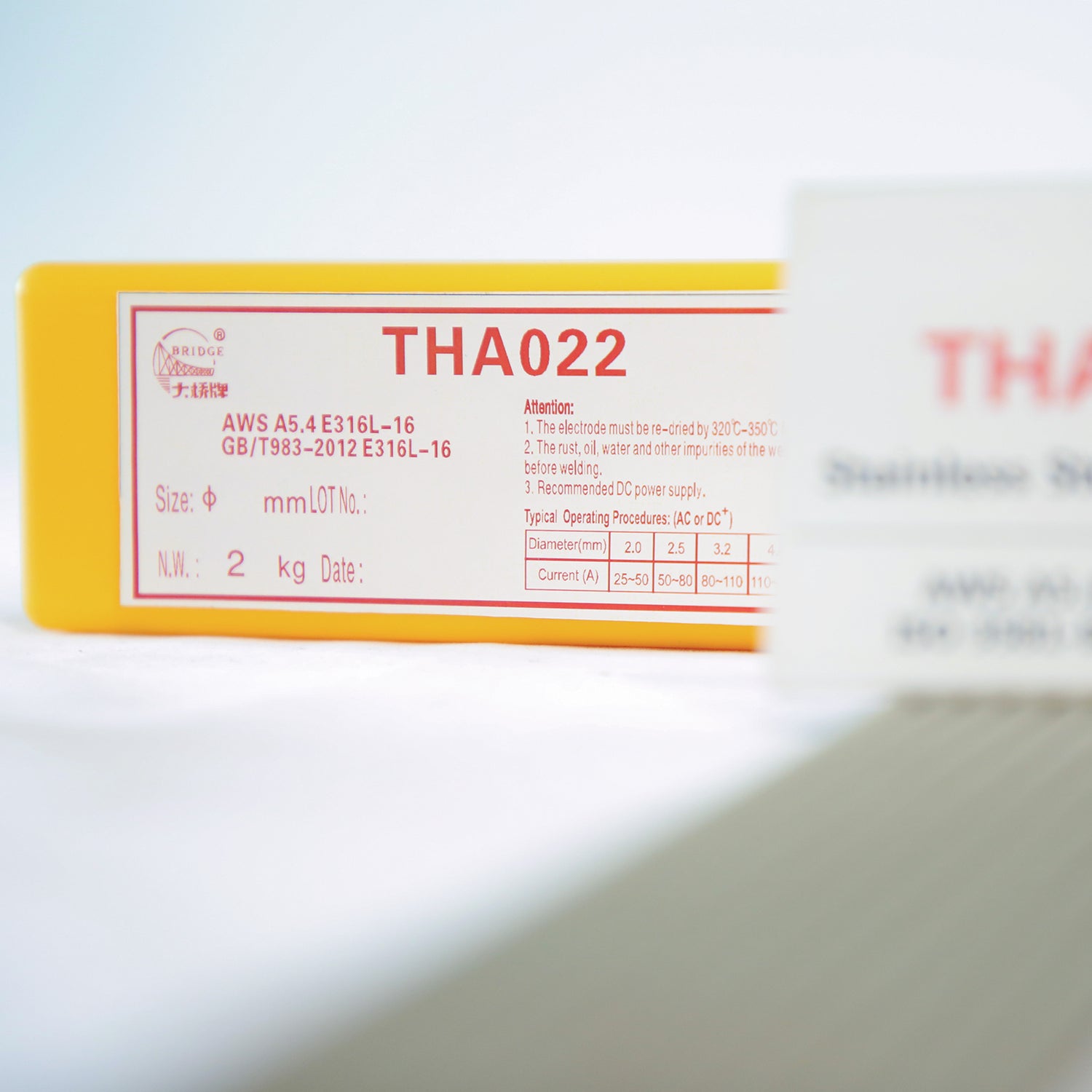

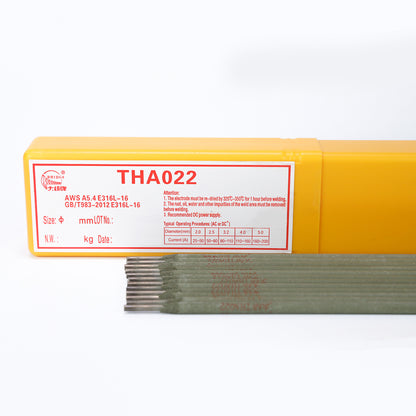

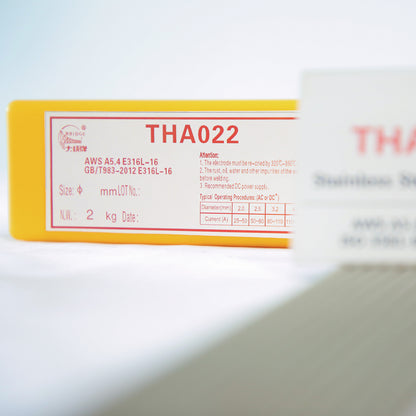

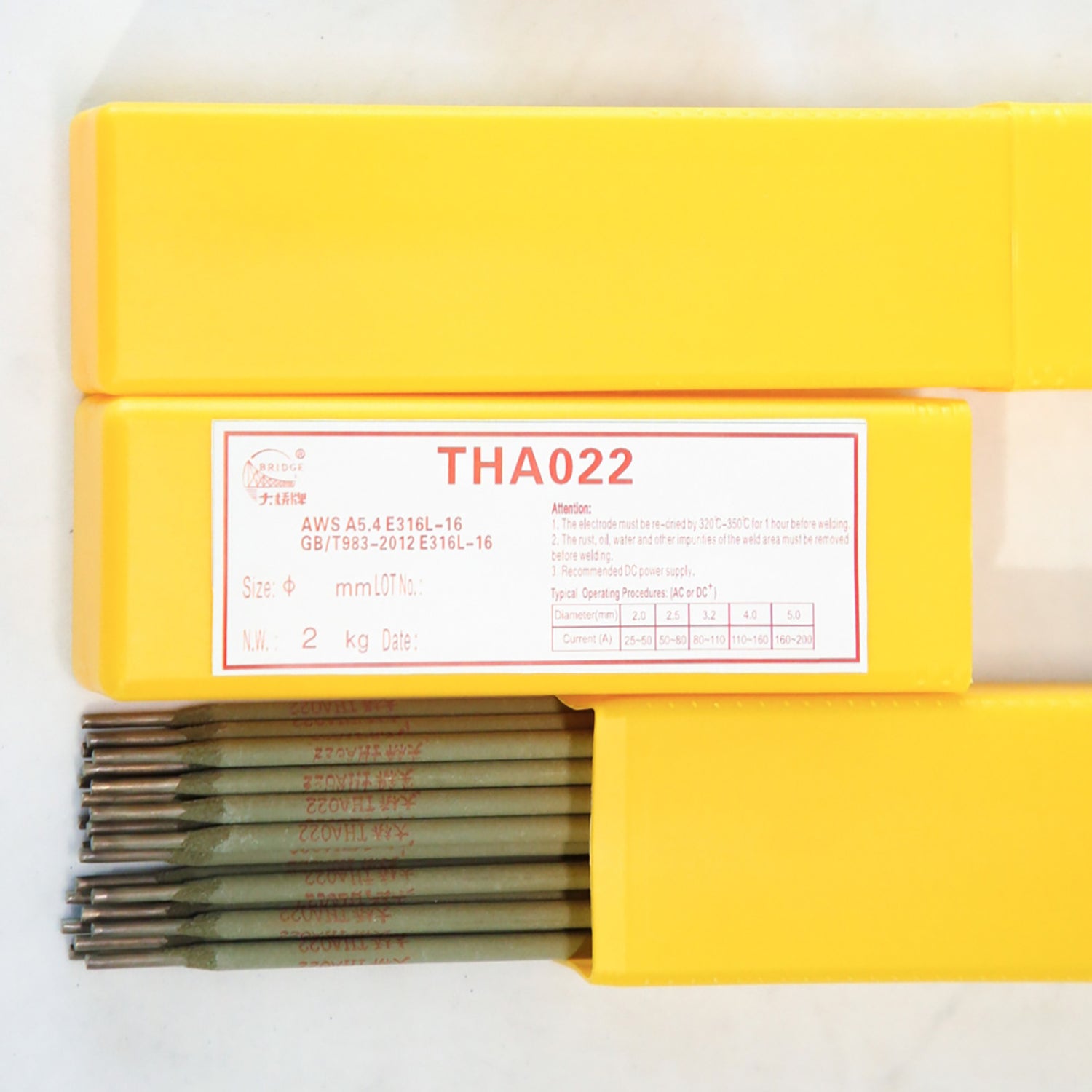

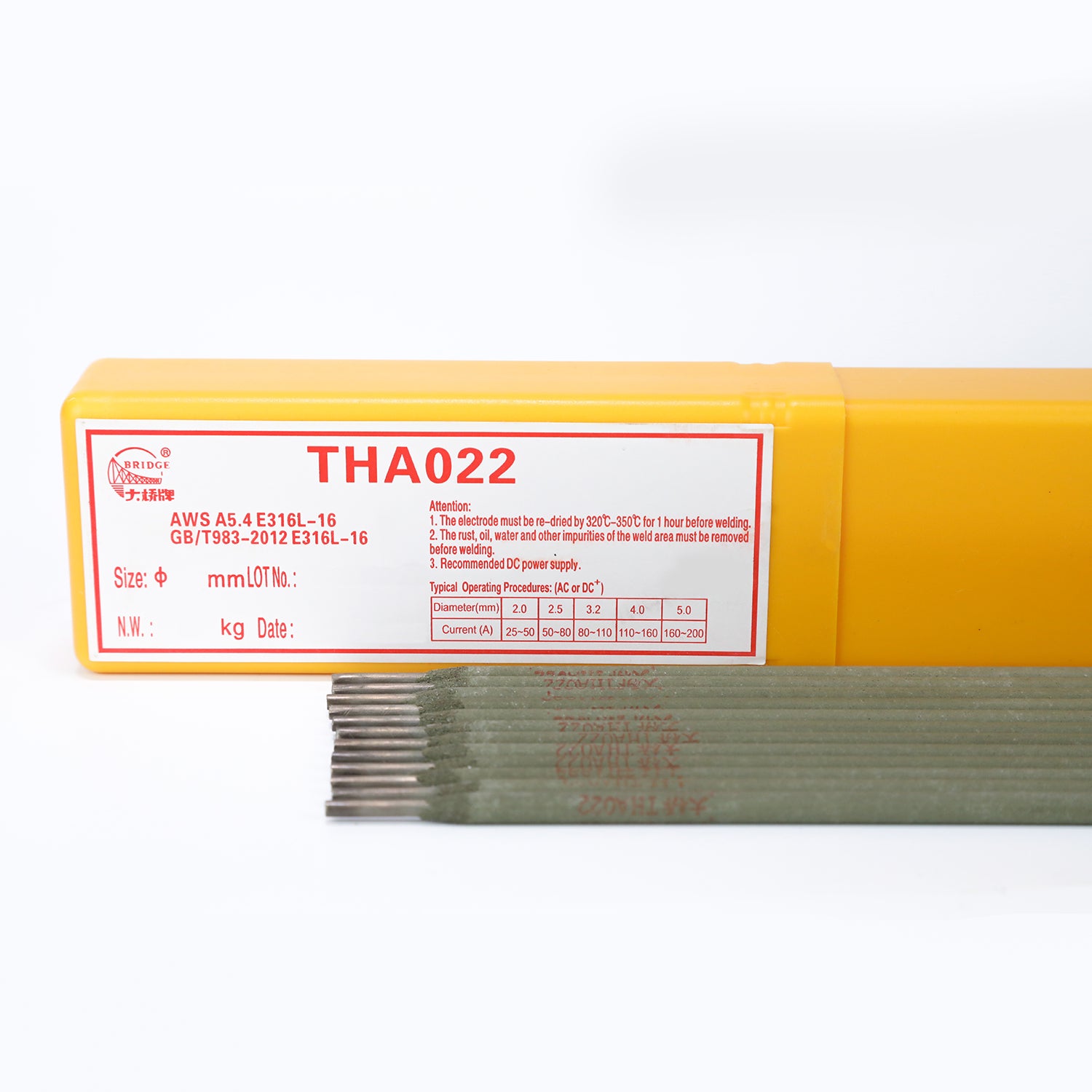

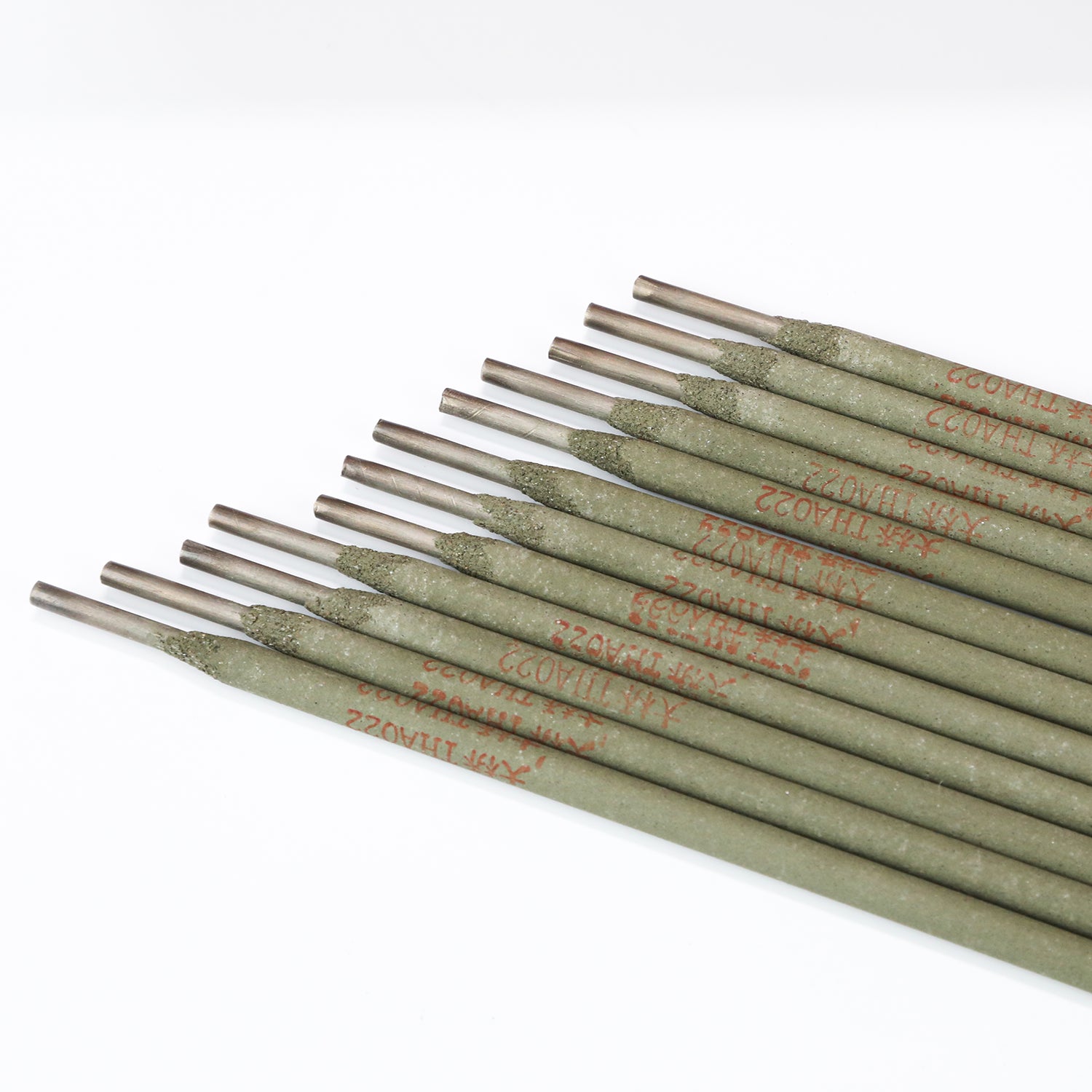

THA022 is rutile type stainless steel electrode with ultra-low carbon. Can be weld for all-position with AC or DC. It have excellent welding performance as good arc stiffness, little spatter, easy slag removal etc.
Attention:
1. The electrode must be re-dry by 320℃-350℃ for 1 hour before welding.
2. The rust, oil, water and other impurities of the weld area must be removed before welding.
3. DC+ is better than AC, lower heat input is suggested, the temperature of preheat and interpass keep under 150℃.
Chemical Composition of All Weld Metal：(Wt. %)
|
Items |
C |
Mn |
Si |
S |
P |
|
Requirements |
≤0.04 |
0.5-2.5 |
≤1.00 |
≤0.03 |
≤0.04 |
|
Typical Results |
0.030 |
1.01 |
0.68 |
0.015 |
0.025 |
|
Items |
Ni |
Cr |
Mo |
Cu |
--- |
|
Requirements |
11.0-14.0 |
17.0-20.0 |
0.5-2.5 |
≤0.75 |
--- |
|
Typical Results |
11.82 |
19.01 |
2.46 |
0.08 |
--- |
Mechanical Properties of All Weld Metal：
|
Items |
Rm/MPa |
A/% |
|
Requirements |
≥490 |
≥25 |
|
Typical Results |
580 |
45 |
Typical Operating Procedures：（AC or DC+）
|
Diameter (mm) |
2.0 |
2.5 |
3.2 |
4.0 |
5.0 |
|
Length (mm) |
300 |
300 |
350 |
400 |
400 |
|
Current (A) |
25-50 |
50-80 |
80-110 |
110-160 |
160-200 |
Classification of Society Certification:
|
Ship Inspection Agency |
CCS |
|
Recognition Level |
316L |
