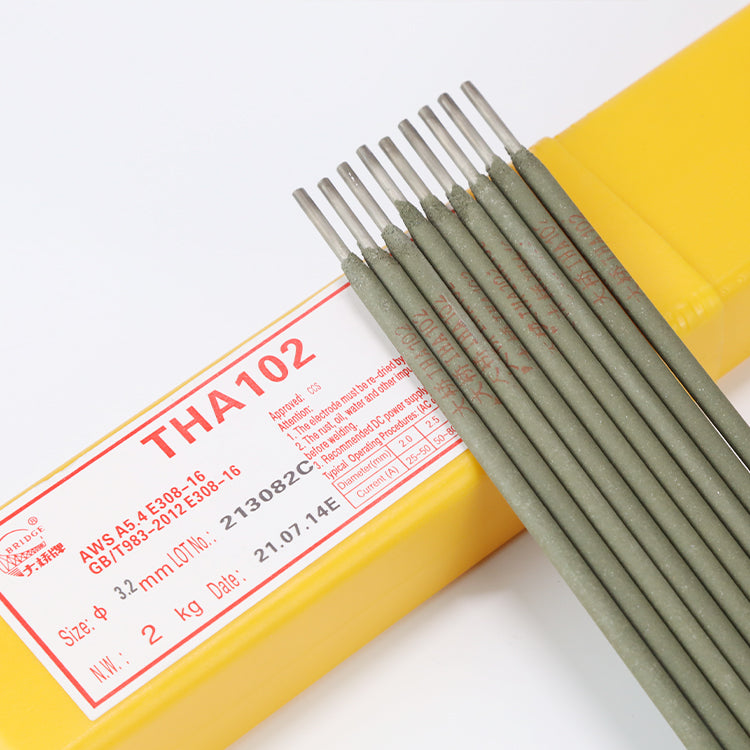

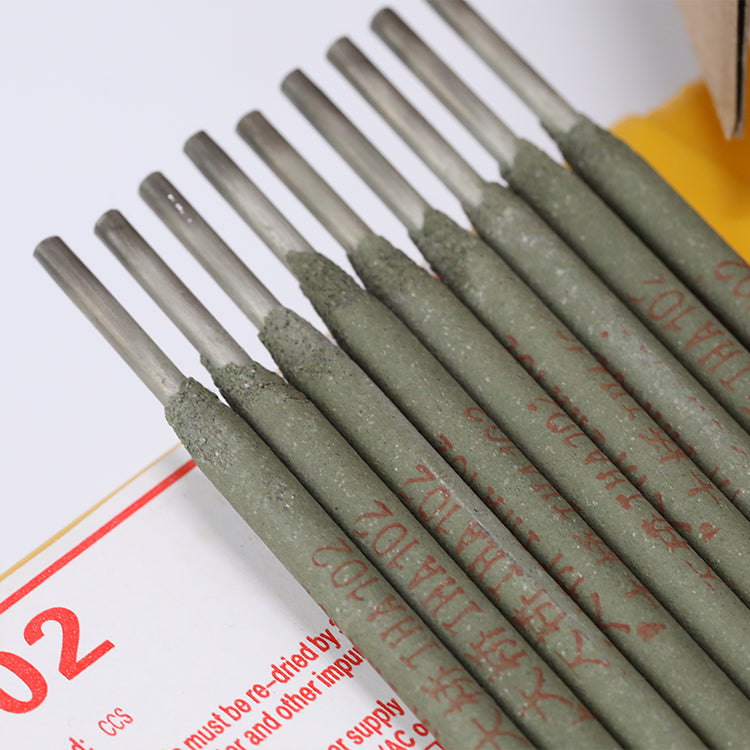

THA102 (E308-16)
E308-16 Stainless Steel Welding Rods | Cryogenic Service
Certificates:
CCS
Application
- Shipbuilding
- Pressure Vessel
- Energy Industry
- Heavy Machinery
DETAILS

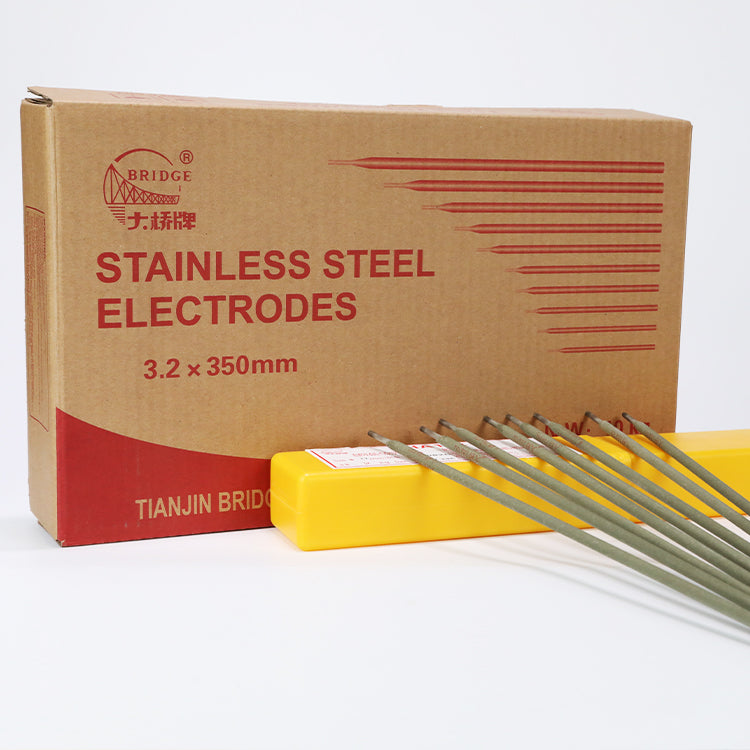

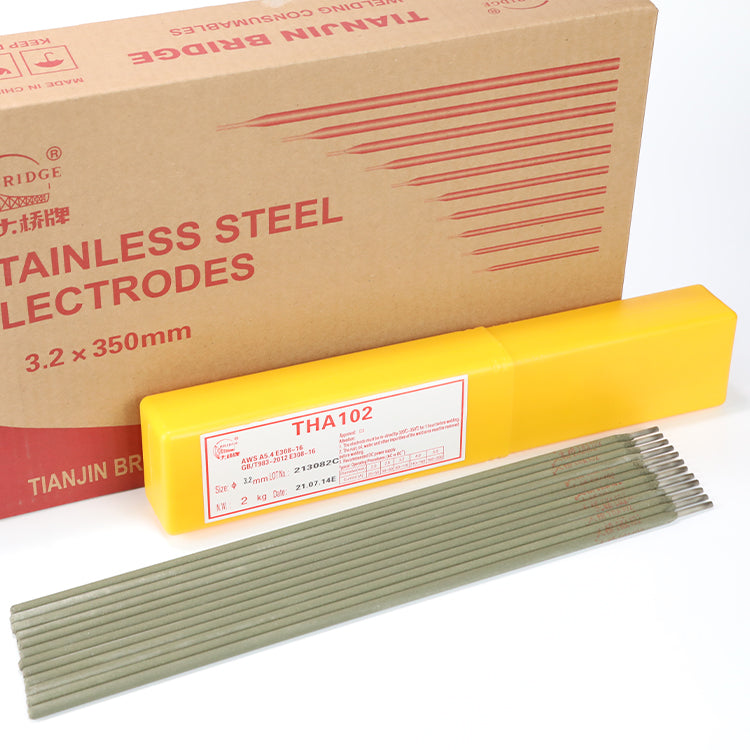

Stainless Steel Welding Electrodes (304 & Cryogenic Grades)
Features
- AC and DC dual-purpose with all-position welding capability
- Excellent welding performance, smooth arc, and easy slag removal
- Superior heat, corrosion, and crack resistance
- Outstanding impact toughness at cryogenic temperatures (-196°C)
Typical Applications
- Cryogenic stainless steel structures and equipment
- Liquid nitrogen (LN2) storage tanks and vessels
- Liquefied natural gas (LNG) processing and transport equipment
- Welding 304 and 18-8 stainless steel components
- Chemical, petrochemical, and low-temperature piping systems
Welding Positions
- PA / PB / PC / PD / PE / PF
WARNING
- The electrodes must be re-dried at 320°C–350°C for 1 hour prior to welding.
- Rust, oil, moisture, and other contaminants must be removed from the weld zone before welding.
- DC+ is preferred to AC, with lower heat input suggested. Preheat and interpass temperatures should be kept below 150°C.
| Test Item | Rm (MPa) | A （%） | KV₂ （J） -196℃ |
|---|---|---|---|
| Requirement | ≥550 | ≥30 | ≥29 |
| Typical Result | 570 | 38 | 36 |
| Element | C | Mn | Si | S | P | Ni | Cr | Mo | Cu |
|---|---|---|---|---|---|---|---|---|---|
| Requirement (%) | ≤0.08 | 0.5-2.5 | ≤1.00 | ≤0.030 | ≤0.04 | 9.0-11.0 | 18.0-21.0 | ≤0.75 | ≤0.75 |
| Typical Result (%) | 0.062 | 1.08 | 0.66 | 0.010 | 0.025 | 10.14 | 18.50 | 0.28 | 0.08 |
| Diameter (mm) | 2.0 | 2.5 | 3.2 | 4.0 | 5.0 |
|---|---|---|---|---|---|
| Current (A) | 25-50 | 50-80 | 80-120 | 110-160 | 160-200 |
