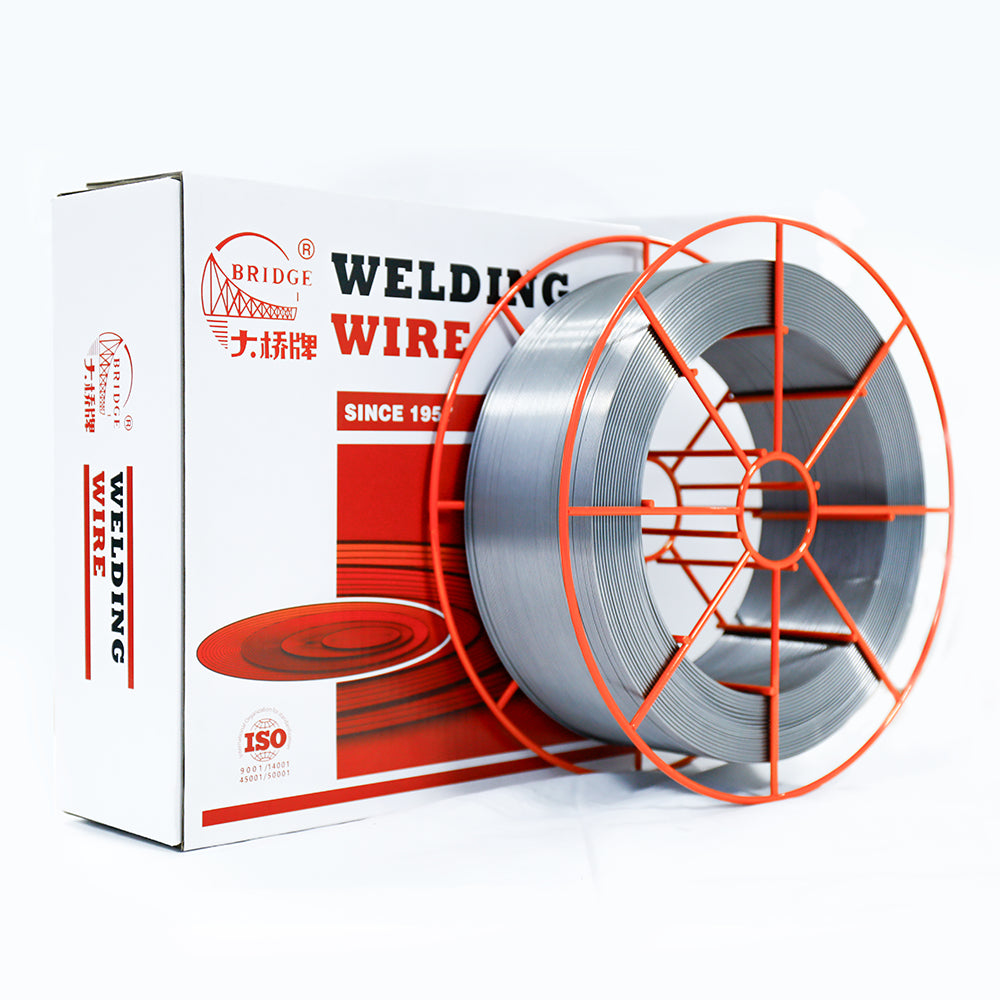

THQ-50N (ER70S-6)
Copper-Free ER70S-6 Carbon Steel MIG Welding Wire | Eco-Friendly Solid Wire
Certificates:
CE
Application
- Shipbuilding
- Pressure Vessel
- Energy Industry
- Heavy Machinery
DETAILS
Mild steel rutile stick electrode designed for use with small AC welders with low OCV
Features
- Copper-free surface for reduced copper fumes and a cleaner working environment
- Extended contact tip life and significantly reduced tip clogging
- Exceptional wire feedability for stable high-speed and long-distance feeding
- Smooth arc performance with extremely low spatter
- Excellent arc re-striking and high resistance to surface flash rust
Typical Applications
- Robotic and automated welding lines
- Automotive and heavy machinery manufacturing
- Structural steel and bridge construction
- Pressure vessel and pipe fabrication
- High-efficiency carbon steel welding projects
Welding Positions
- PA / PB / PC / PD / PE / PF / PG
WARNING
- Rust, oil, moisture, and other contaminants must be removed from the weld zone before welding.
- The mechanical properties of all-weld metal are determined by heat input; lower heat input is generally preferred to higher heat input.
| Test Item | Rm (MPa) | Rel / RP₀.₂ (MPa) | A （%） | KV₂ （J） -30℃ |
|---|---|---|---|---|
| Requirement | 500-640 | ≥420 | ≥20 | ≥47 |
| Typical Result | 560 | 450 | 26 | 108 |
| Element | C | Mn | Si | S | P | Ni | Cr | Mo | V | Cu |
|---|---|---|---|---|---|---|---|---|---|---|
| Requirement (%) | 0.06-0.15 | 1.40-1.85 | 0.80-1.15 | ≤0.025 | ≤0.025 | ≤0.15 | ≤0.15 | ≤0.15 | ≤0.03 | ≤0.50 |
| Typical Result (%) | 0.08 | 1.50 | 0.89 | 0.012 | 0.013 | 0.030 | 0.02 | 0.002 | 0.003 | 0.03 |
| Diameter (mm) | 0.8 | 1.0 | 1.2 | 1.6 |
|---|---|---|---|---|
| Current (A) | 50-180 | 70-230 | 80-350 | 120-500 |
